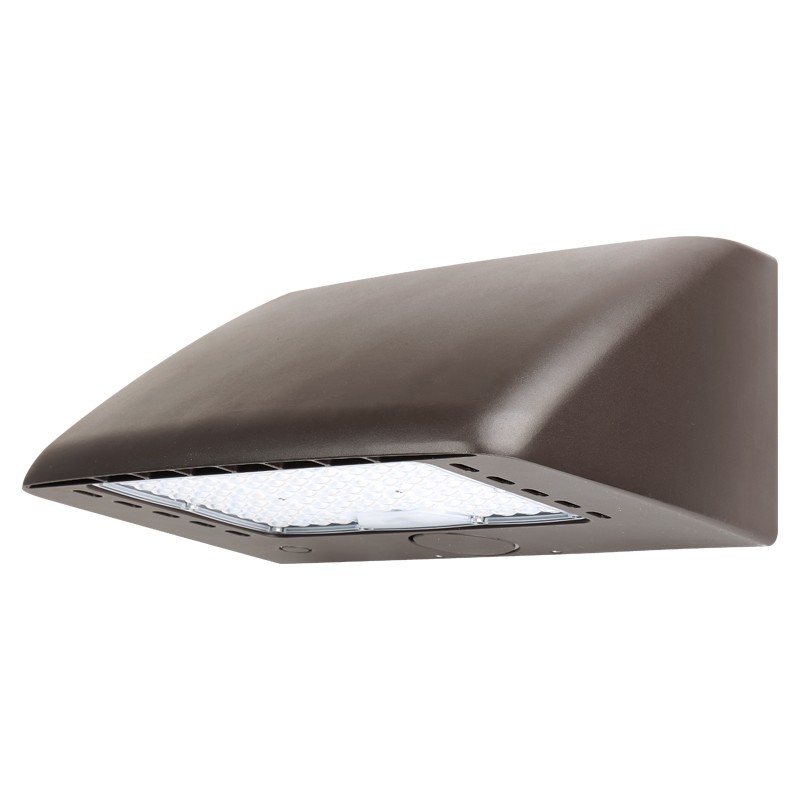

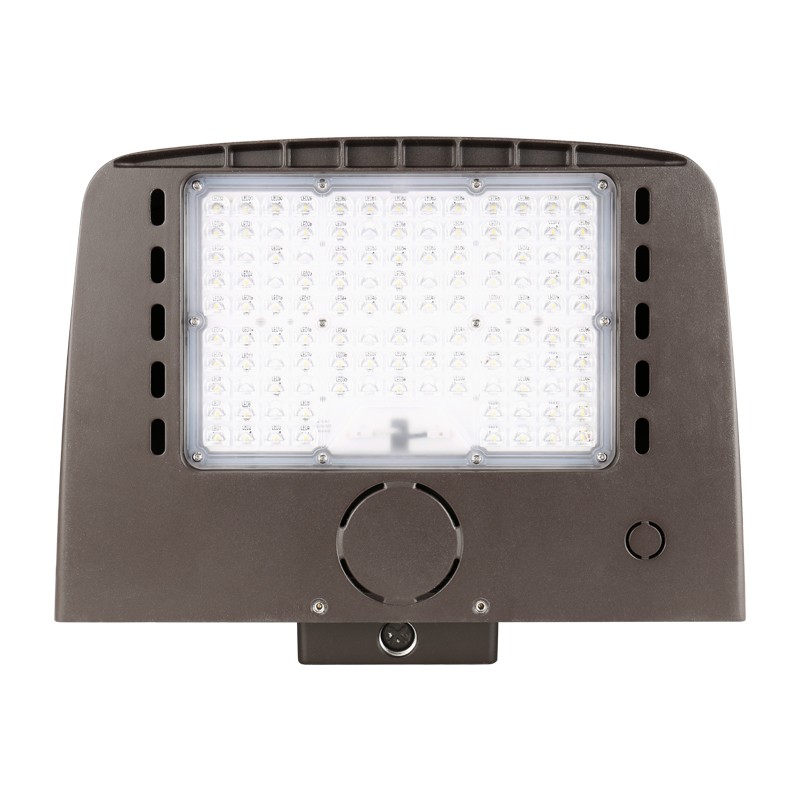

WP13 – Wall Pack

Description

Cast in a modern and low-profile design, our MWP13 series is easily customized to fit every building’s design aesthetic. Available in two sizes, the MWP13 delivers 3,800 to 13,800 lumens with a wide, uniform distribution. It’s ideal for illuminating commercial office buildings,warehouses, campuses, shopping malls and other office complexes.

Features & Benefits

Features & Benefits

  • Rugged die-cast housing and UV stabilized polycarbonate optic lens.

  • Four adjustable Wattage levels available for each models.

  • Color Temperature adjustable: 3000K, 4000K, 5000K.

  • Universal 120-277VAC input voltage.

  • 0-10V dimming driver standard for 10% to 100% dimming.

  • Operating temperature is -40˚C to 45˚C.

Specifications

Series No.

WP13

Voltage

120-277 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

27W, 45W, 70W, 100W

Light Output

3600 lm, 5800 lm, 9100 lm, 13400 lm

UL Listing

UL-CA-2118057-1

Operating Temperature

-40 ̊ C to 40 ̊ C ( -40°F to 104°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Pathway, Building entryways, Perimeter lighting

Mounting

Junction box (No need to open driver box)

Accessories

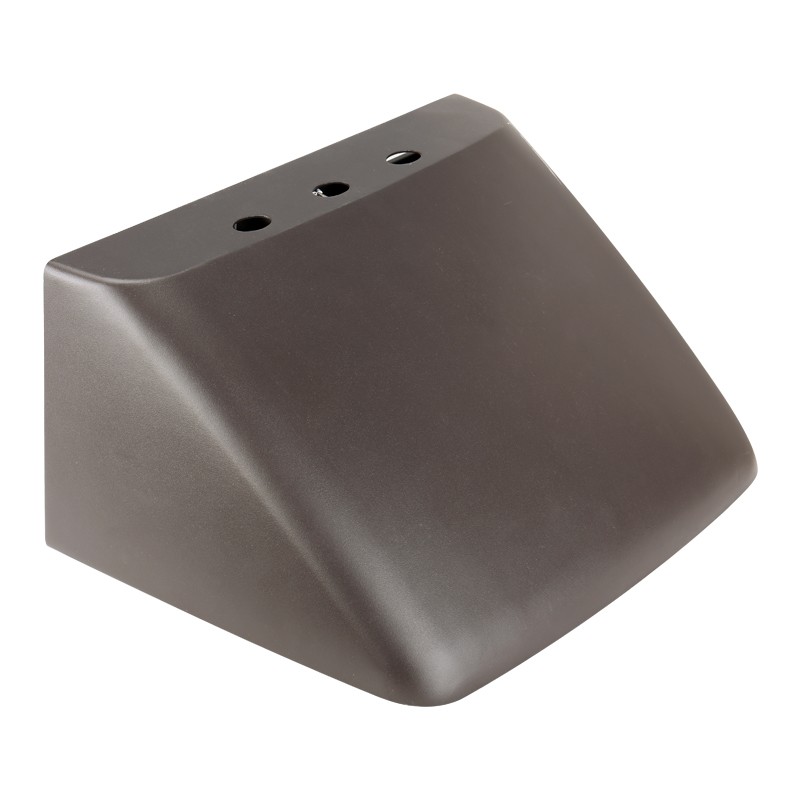

Photocell - Button (Optional), Occupancy Sensor (Optional), Emergency Battery Backup, Surface-Mounted Back Box

Specifications

Series No.

WP13

Voltage

120-277 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

27W, 45W, 70W, 100W

Light Output

3600 lm, 5800 lm, 9100 lm, 13400 lm

UL Listing

UL-CA-2118057-1

Operating Temperature

-40 ̊ C to 40 ̊ C ( -40°F to 104°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Pathway, Building entryways, Perimeter lighting

Mounting

Junction box (No need to open driver box)

Accessories

Photocell - Button (Optional), Occupancy Sensor (Optional), Emergency Battery Backup, Surface-Mounted Back Box

Specifications

Series No.

WP13

Voltage

120-277 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

27W, 45W, 70W, 100W

Light Output

3600 lm, 5800 lm, 9100 lm, 13400 lm

UL Listing

UL-CA-2118057-1

Operating Temperature

-40 ̊ C to 40 ̊ C ( -40°F to 104°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Pathway, Building entryways, Perimeter lighting

Mounting

Junction box (No need to open driver box)

Accessories

Photocell - Button (Optional), Occupancy Sensor (Optional), Emergency Battery Backup, Surface-Mounted Back Box
