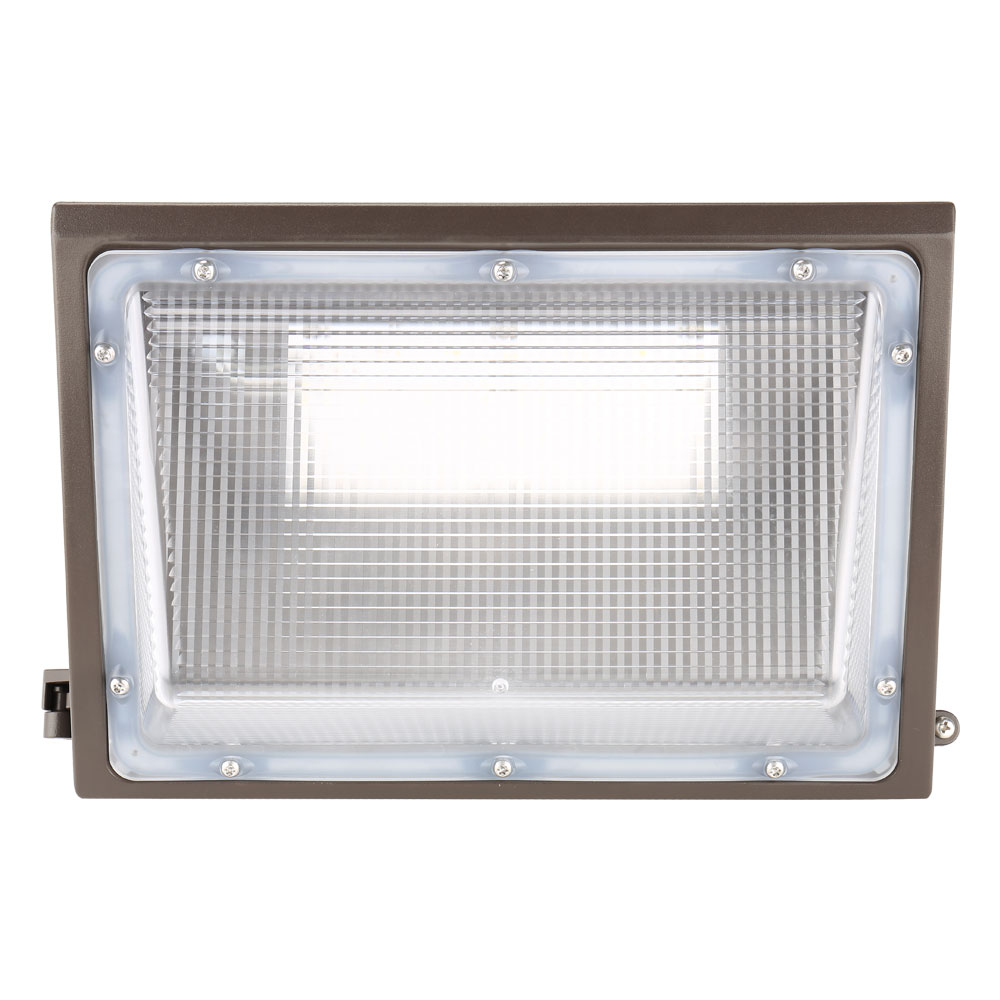

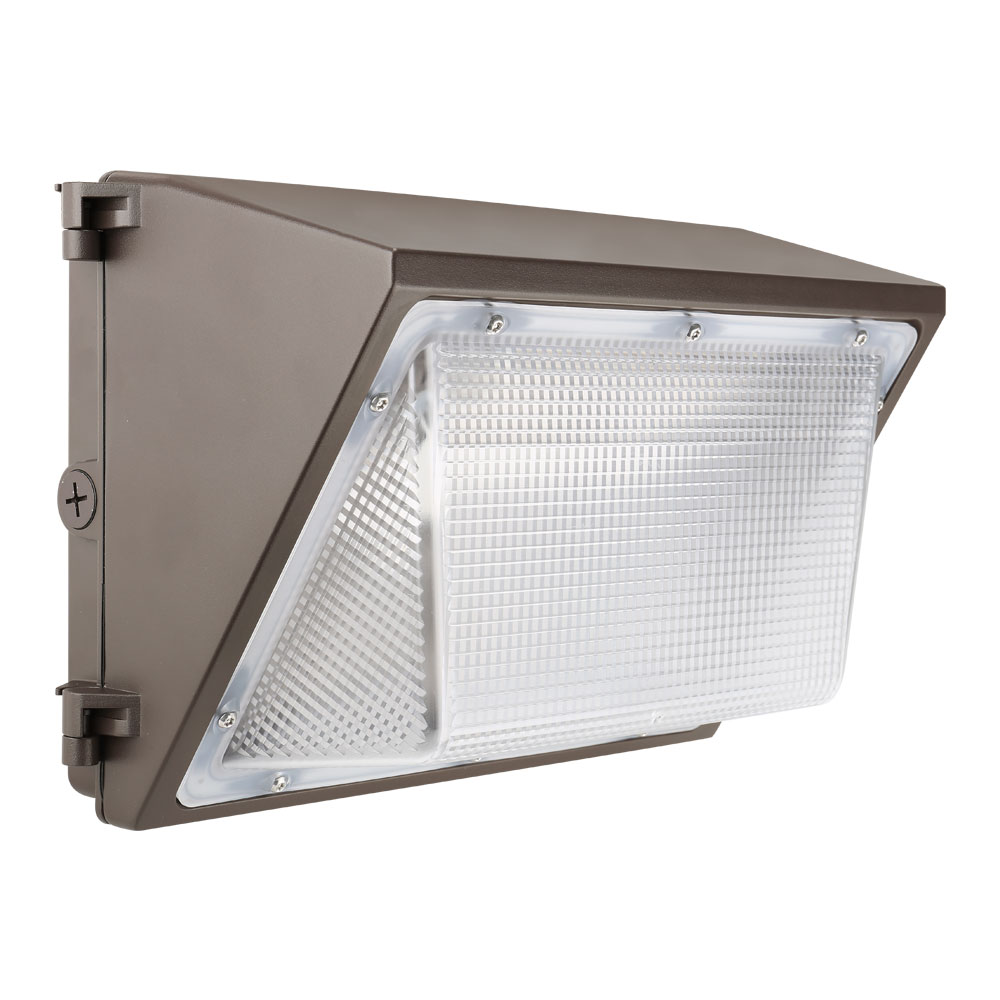

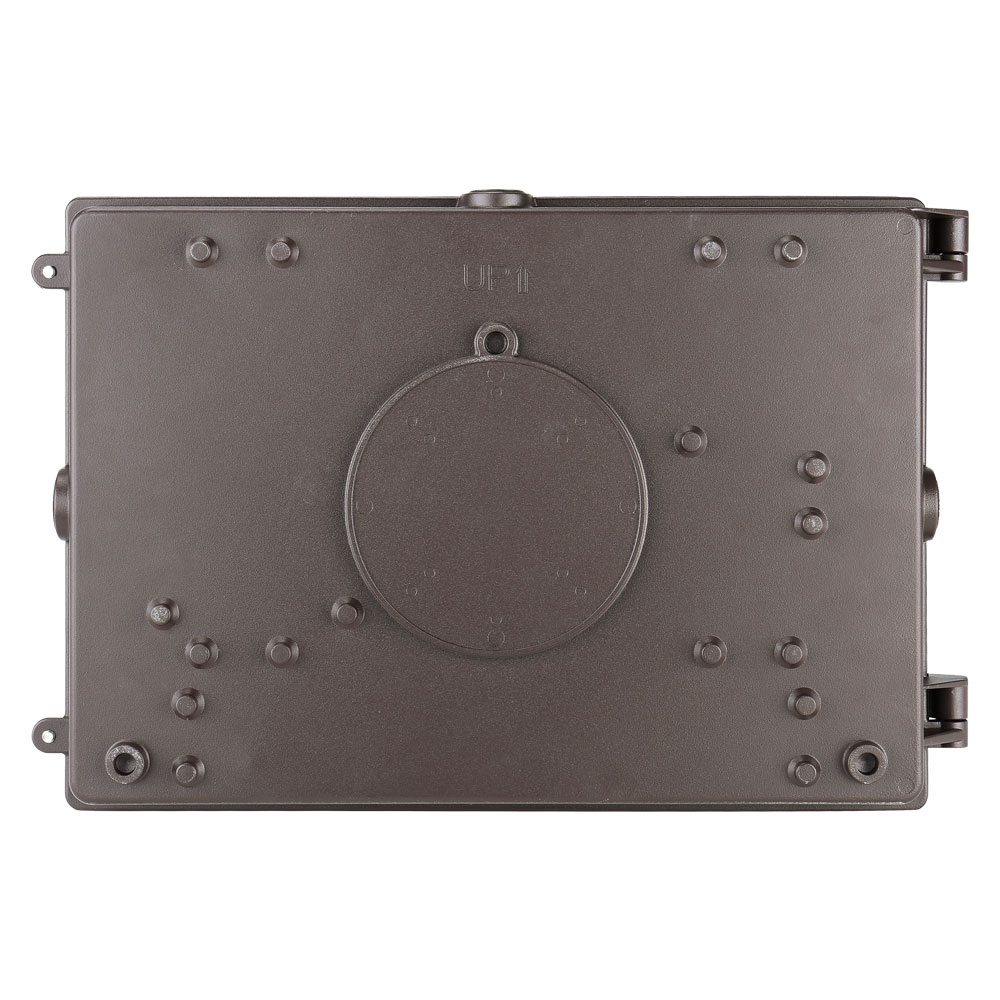

WP08 – Wall Pack

Description

The MWP08 efficiently deliver lumens and consumes less energy than traditional wall packs. A traditional non-cutoff design offers the best vertical illuminations. This versatile luminaire is ideal for replacing existing MH fixtures.

Features & Benefits

Features & Benefits

  • Rugged die-cast housing and UV stabilized polycarbonate optic lens.

  • Four adjustable Wattage levels available for 65W, 100W.

  • 65W, 100W optional and Color Temperature adjustable: 3000K, 4000K,5000K

  • Universal 120-277VAC input voltage.

  • 0-10V dimming driver standard for 10% to 100% dimming

  • Emergency Battery option.

  • Operating temperature is -40℃ to 40℃.

Specifications

Series No.

MWP08

Voltage

120-277 VAC or 347-480 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

30W, 40W, 65W, 90W, 125W

Light Output

3600 lm, 5100 lm, 7900 lm, 10500 lm, 15000 lm

UL Listing

UL-CA-L359489-31-51108102-2, UL-CA-L359489-31-91505102-3

Operating Temperature

-40 ̊ C to 40 ̊ C ( -40°F to 104°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Pathway, Building entryways, Perimeter lighting

Mounting

Junction box or Wall mount

Accessories

Photocell - Button, Emergency Battery Backup (Optional)

Specifications

Series No.

MWP08

Voltage

120-277 VAC or 347-480 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

30W, 40W, 65W, 90W, 125W

Light Output

3600 lm, 5100 lm, 7900 lm, 10500 lm, 15000 lm

UL Listing

UL-CA-L359489-31-51108102-2, UL-CA-L359489-31-91505102-3

Operating Temperature

-40 ̊ C to 40 ̊ C ( -40°F to 104°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Pathway, Building entryways, Perimeter lighting

Mounting

Junction box or Wall mount

Accessories

Photocell - Button, Emergency Battery Backup (Optional)

Specifications

Series No.

MWP08

Voltage

120-277 VAC or 347-480 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

30W, 40W, 65W, 90W, 125W

Light Output

3600 lm, 5100 lm, 7900 lm, 10500 lm, 15000 lm

UL Listing

UL-CA-L359489-31-51108102-2, UL-CA-L359489-31-91505102-3

Operating Temperature

-40 ̊ C to 40 ̊ C ( -40°F to 104°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Pathway, Building entryways, Perimeter lighting

Mounting

Junction box or Wall mount

Accessories

Photocell - Button, Emergency Battery Backup (Optional)

Downloads

WP08 Series Wall Pack Spec

WP08 Series Wall Pack Spec
