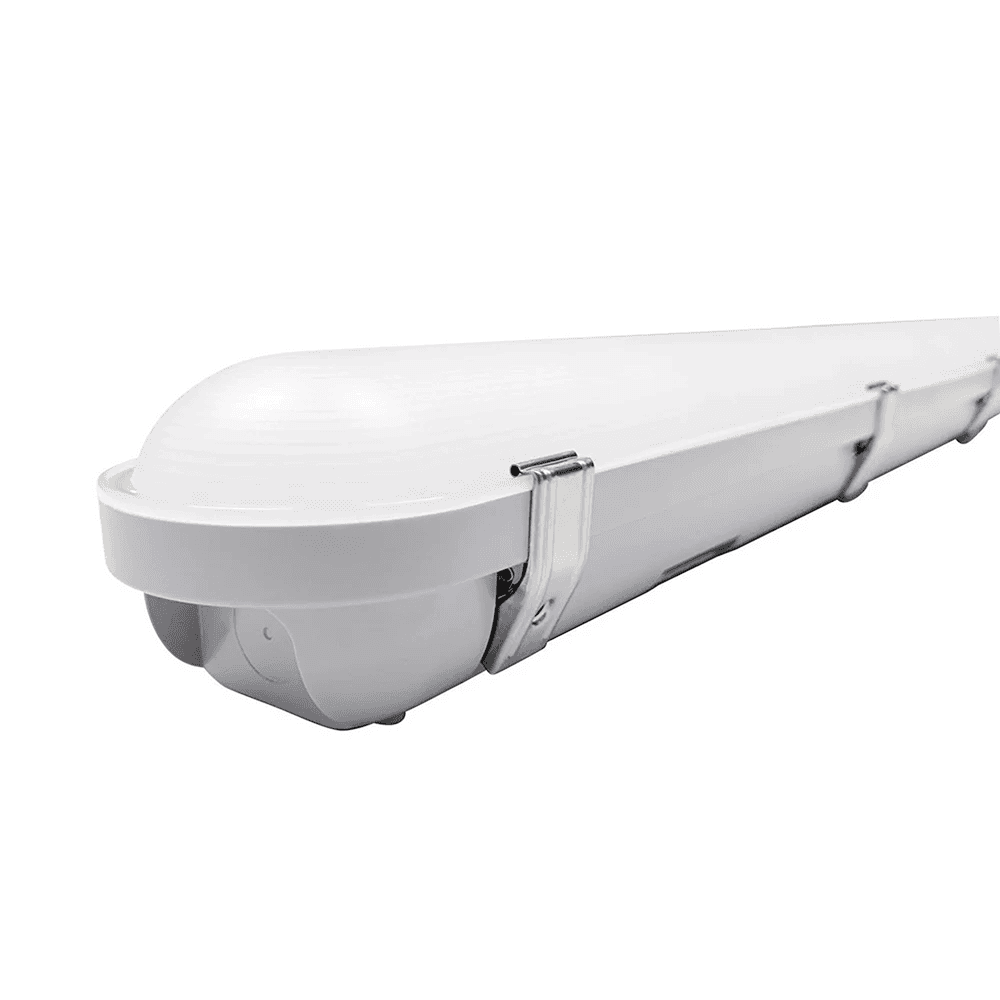

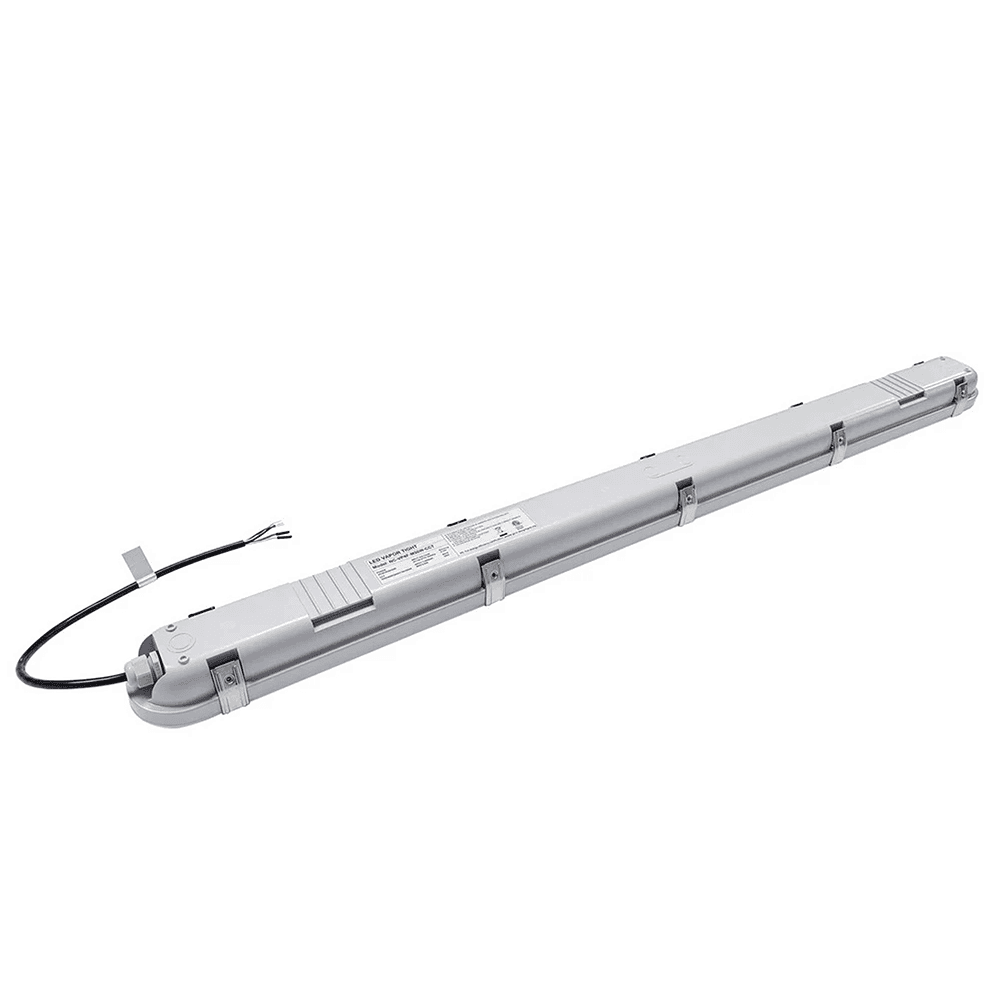

VP series – Vapor Tights

Description

Our LED Vapor Tight Lights are engineered for reliable performance in the toughest environments. Built for parking decks, warehouses, food prep areas, corridors, and loading docks, these sealed fixtures provide uniform, low-glare illumination where moisture, dust, and impact resistance are essential. Our vapor tight luminaires are designed for durable, code-ready performance with easy installation and long service life.

Features & Benefits

Features & Benefits

  • LED Vapor Tight is manufactured of impact resistant plastic resins that are designed to

    keep moisture, dirt and dust out. To protect interior wires and components inside the

    fixture.

  • Built with the highest quality driver that is Universal Voltage (120V-277Vac).10KV(@120-277V)or 20KV@347-480V) surge protection.

  • IP65

  • 0-10V Continuous Dimming.

  • Tunable 5-CCT (3500K, 4000K, 5000K, 5700K, 6500K).

  • Tunable 5-Wattages.

  • Operating temperatures -4°F to 113°F (-20°C to 45°C).

Specifications

Series No.

VP

Voltage

120-277 VAC

Dimmable

0-10V Continuous dimming

Light Source Type

Color Temperature

3500K, 4000K, 5000K, 5700K, 6500K

Power

12W, 15W, 18W, 22W, 25W, 30W, 35W, 40W, 50W, 60W, 70W, 80W, 100W

Light Output

1560-12,500 LM

UL Listing

Wet location

Operating Temperature

-4°F to 113°F (-20°C to 45°C).

Lifespan

Warranty

5 year

Application

Parking Decks, Warehouses, Food Prep, Corridors, etc..

Mounting

Suspension Cables, Chains, Surface Mount

Accessories

Specifications

Series No.

VP

Voltage

120-277 VAC

Dimmable

0-10V Continuous dimming

Light Source Type

Color Temperature

3500K, 4000K, 5000K, 5700K, 6500K

Power

12W, 15W, 18W, 22W, 25W, 30W, 35W, 40W, 50W, 60W, 70W, 80W, 100W

Light Output

1560-12,500 LM

UL Listing

Wet location

Operating Temperature

-4°F to 113°F (-20°C to 45°C).

Lifespan

Warranty

5 year

Application

Parking Decks, Warehouses, Food Prep, Corridors, etc..

Mounting

Suspension Cables, Chains, Surface Mount

Accessories

Specifications

Series No.

VP

Voltage

120-277 VAC

Dimmable

0-10V Continuous dimming

Light Source Type

Color Temperature

3500K, 4000K, 5000K, 5700K, 6500K

Power

12W, 15W, 18W, 22W, 25W, 30W, 35W, 40W, 50W, 60W, 70W, 80W, 100W

Light Output

1560-12,500 LM

UL Listing

Wet location

Operating Temperature

-4°F to 113°F (-20°C to 45°C).

Lifespan

Warranty

5 year

Application

Parking Decks, Warehouses, Food Prep, Corridors, etc..

Mounting

Suspension Cables, Chains, Surface Mount

Accessories
