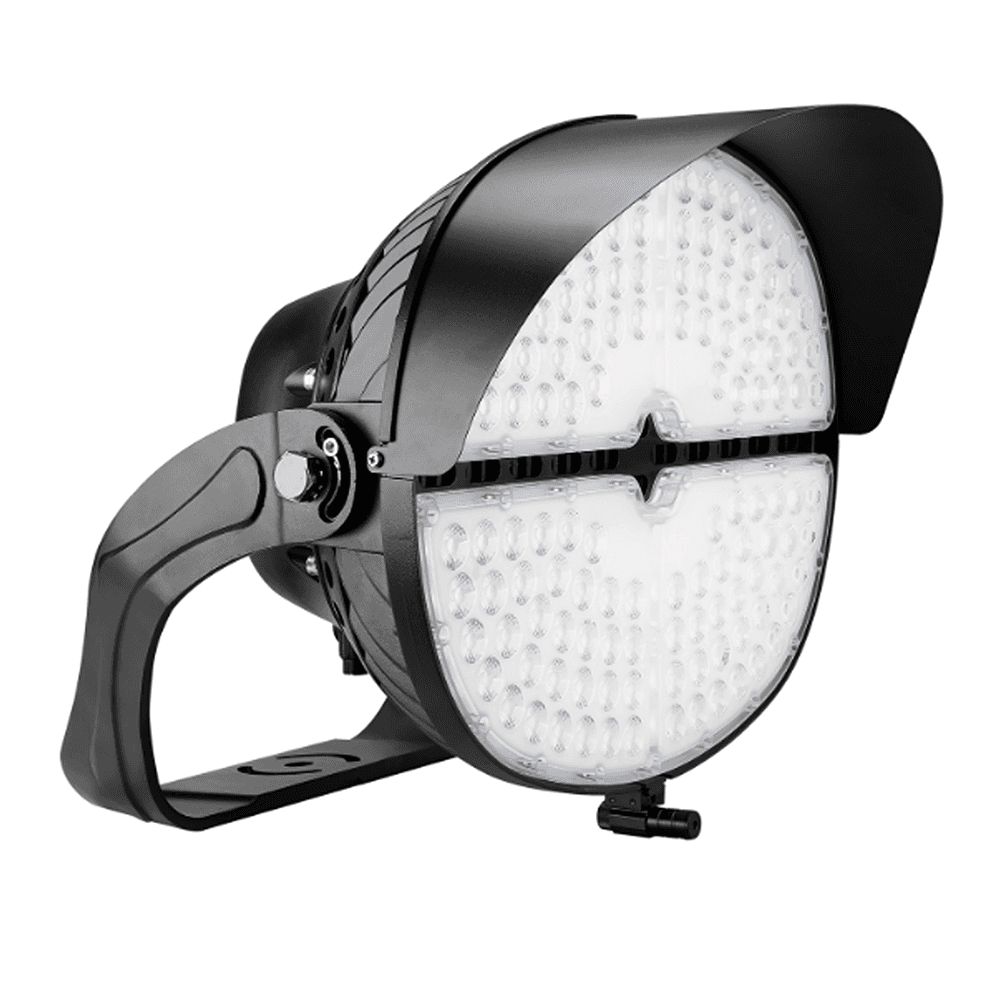

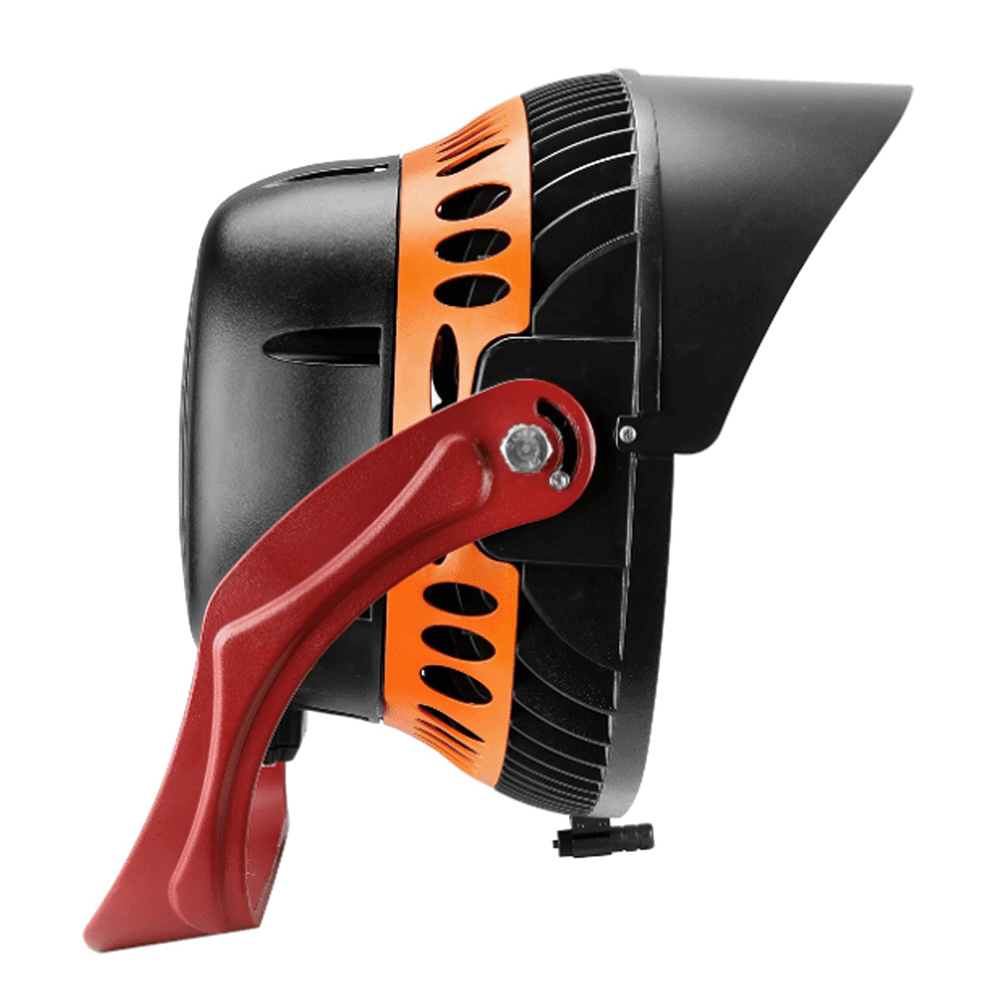

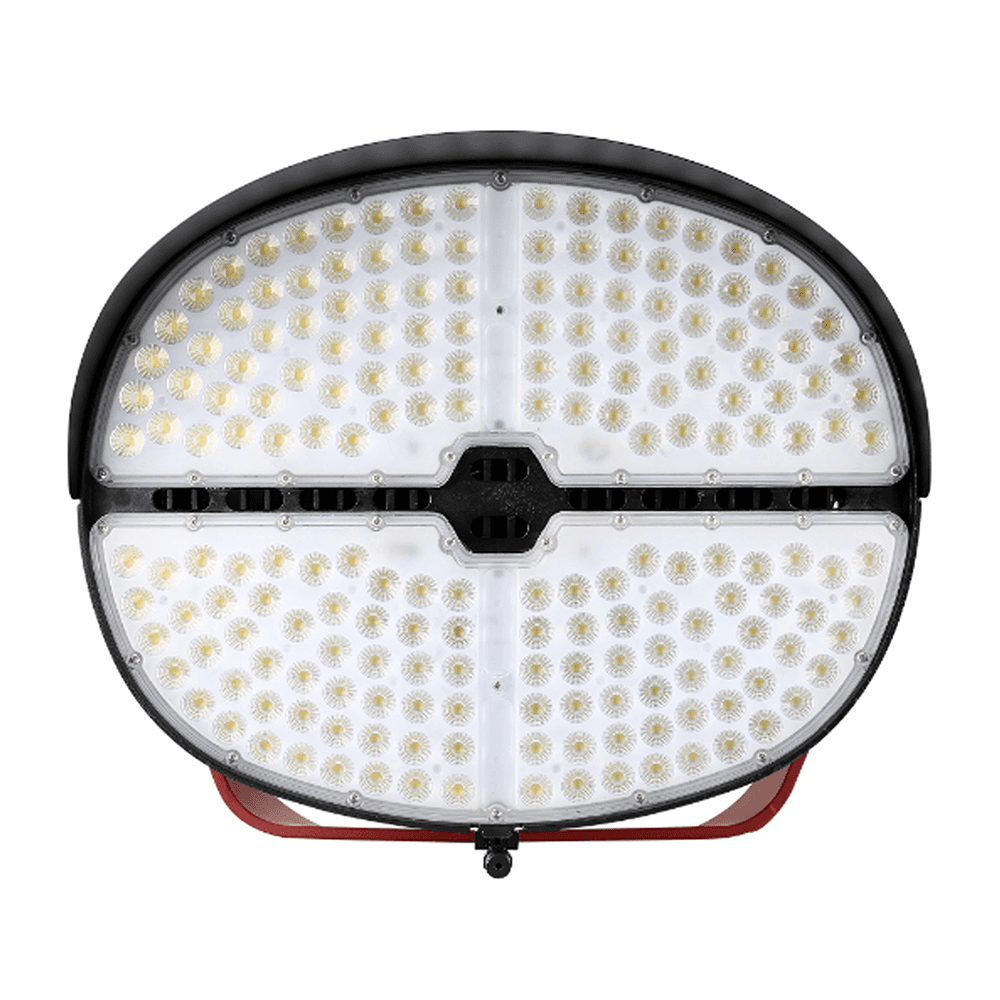

Stadium Light

Description

Our stadium lights are designed for high school, collegiate, recreational, professional indoor and outdoor sports venues. They're heavy-duty, lightweight, and durable. The die-cast design allows for high wear resistance and withstands harsh, extreme outdoor conditions. The highly efficient and professional LED sports light, with different NEMA distributions that deliver more foot-candles for exactly what you need.

Features & Benefits

Scalable Lumen Packages from 49,500 to 118,000 Lumens.
Standard 4000K, 5000K, 5700K (70/80/90 CRI) light engine configurations.
Universal 120 – 277VAC or 347 – 480VAC input voltage with 0 – 10V dimming.
Sealed die – casting profile with IP65 protection for outdoor use.
Estimated 100,000 – hour LED lifespan and DLC Qualified.

Specifications

Series No.

MSL01

Voltage

120-277V/277V-480V VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K/5700K

Power

350W, 505W, 600W, 500W, 600W, 650W, 850W

Light Output

51000 lm, 70000 lm, 84000 lm, 71000 lm, 84000 lm, 91000 lm 118000 lm

UL Listing

UL-US-L359489-11-41100202-6

Operating Temperature

-40°C to 55°C （-40°F to 131°F）

Lifespan

100,000-hour

Warranty

10 year

Application

General security lighting for large areas: port and rail centers, airports, Interior or exterior sports

Mounting

Trunnion

Accessories

Black Top Visor (Default), Yoke Adaptor, Aiming Sight Bluetooth Controller, Glare Control Shield (Optional for large size)
