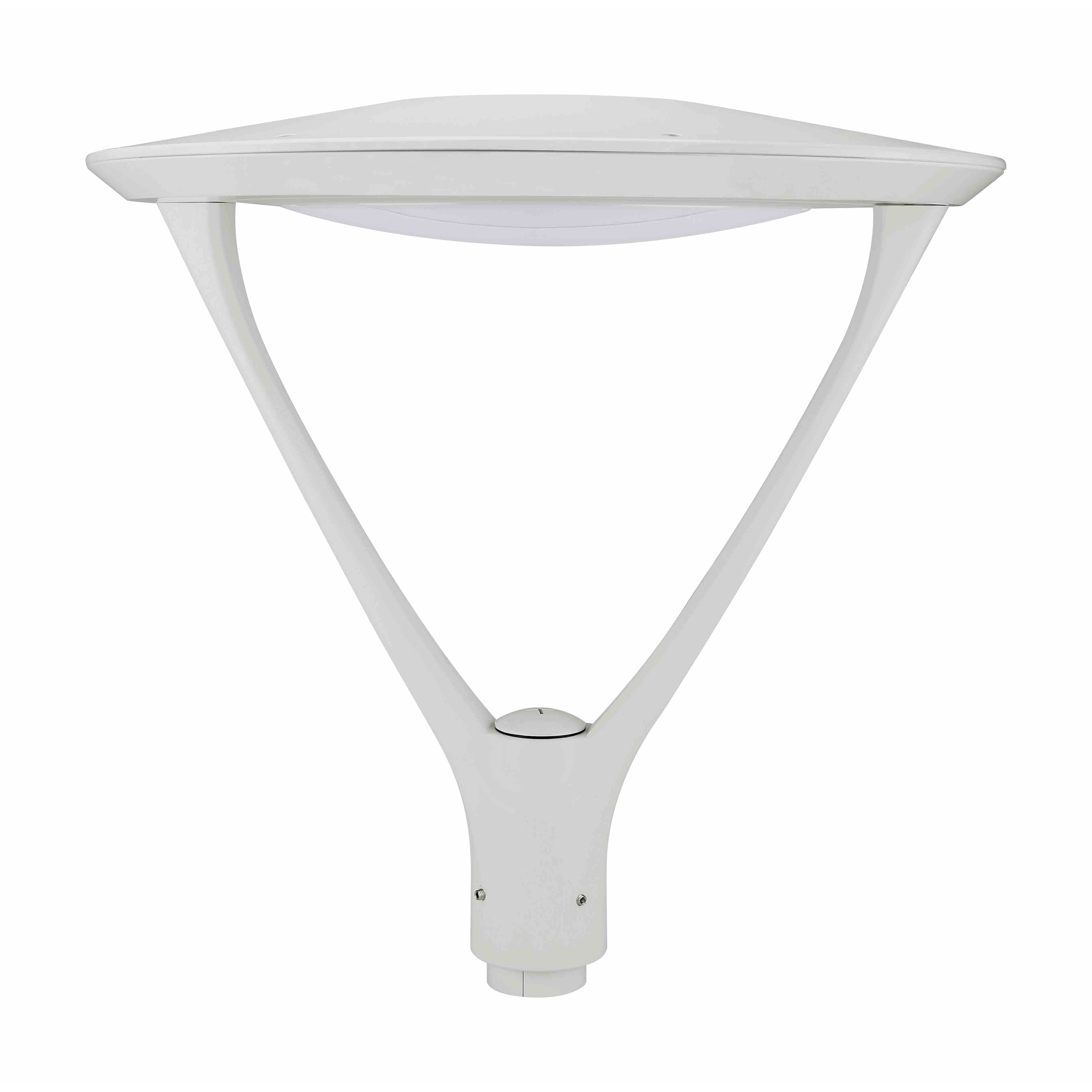

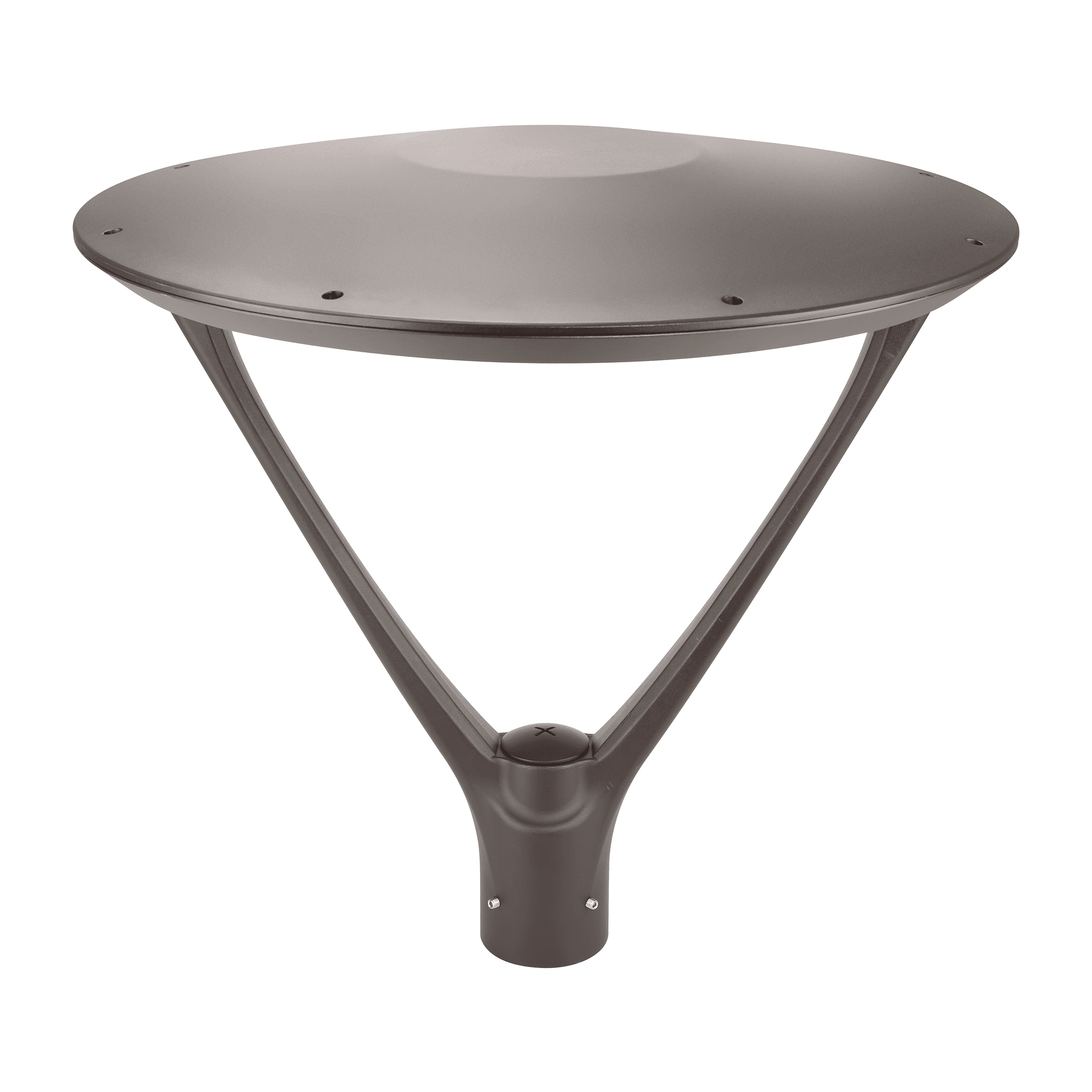

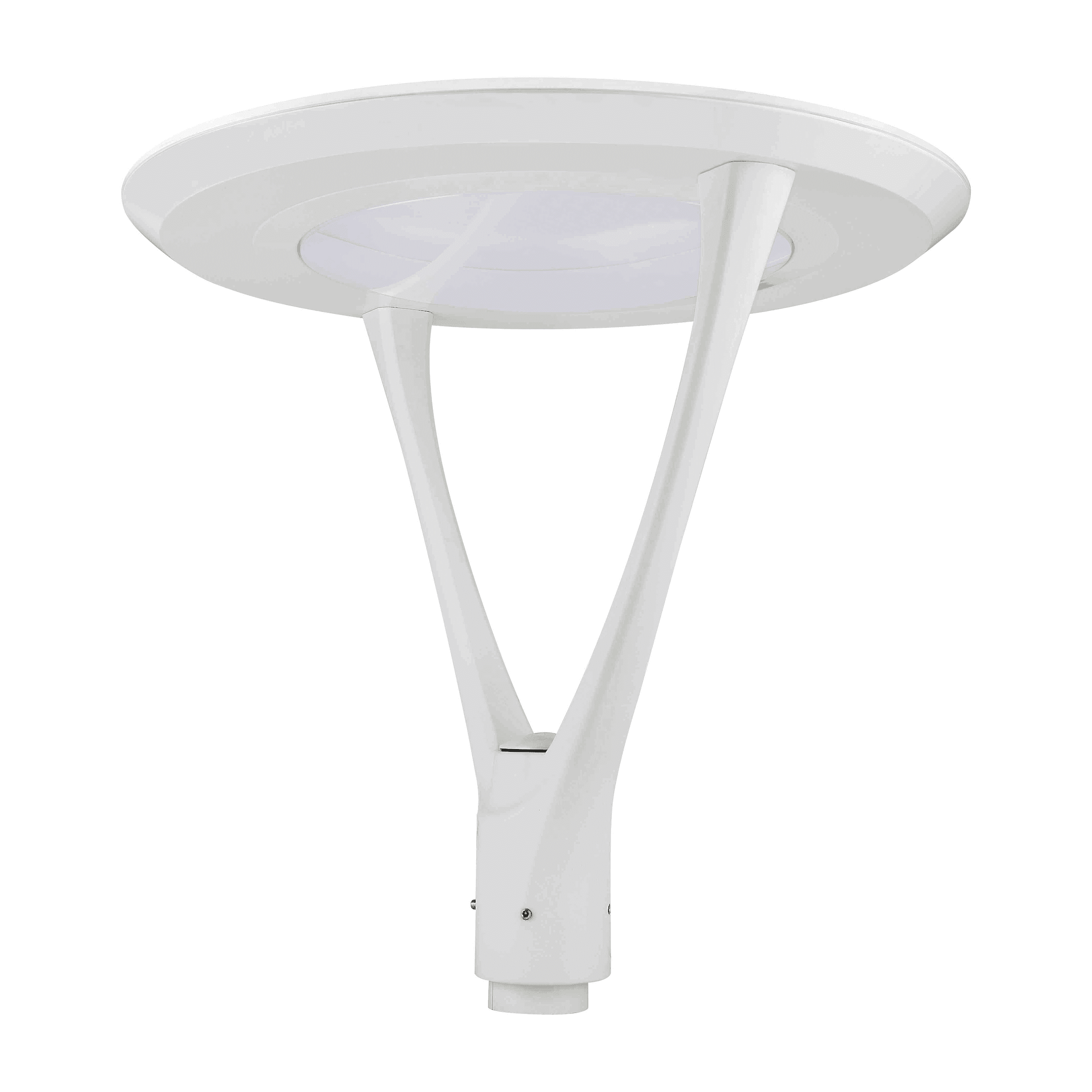

MPL01 – Post Top Light

Description

The MPL01 post top provides a unique, scalable lighting solution targeted for 8’ to 20’ mounting heights. Its design brings proportion to parking lots, drive lanes, entrances, building perimeters, and pathways. The structure is clean promotes harmony between the outdoor lighting and architecture.

Features & Benefits

Rugged die-cast aluminum housing and elegant exterior design
UV resistant Milky polycarbonate lens.
3pin or NEMA 7pin twist-Lock photocell option.
Built-in occupancy sensor option.
0-10V dimming driver standard for 10% to 100% dimming.
Operating temperature is -40°C to 45°C.

Specifications

Series No.

MPL01

Voltage

120-277 VAC or 347-480 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

45W, 70W, 87W, 130W

Light Output

5500 lm, 8700 lm, 10600 lm, 15800 lm

UL Listing

UL-US-L359489-11-60219102-9

Operating Temperature

-40 ̊ C to 45 ̊ C ( -40°F to 113°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Building perimeters, Pathway, Green area

Mounting

Poles or Wall sconce

Accessories

PIR Motion Sensor ( Optional ), Photocell ( Optional )

Specifications

Series No.

MPL01

Voltage

120-277 VAC or 347-480 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

45W, 70W, 87W, 130W

Light Output

5500 lm, 8700 lm, 10600 lm, 15800 lm

UL Listing

UL-US-L359489-11-60219102-9

Operating Temperature

-40 ̊ C to 45 ̊ C ( -40°F to 113°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Building perimeters, Pathway, Green area

Mounting

Poles or Wall sconce

Accessories

PIR Motion Sensor ( Optional ), Photocell ( Optional )

Specifications

Series No.

MPL01

Voltage

120-277 VAC or 347-480 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

45W, 70W, 87W, 130W

Light Output

5500 lm, 8700 lm, 10600 lm, 15800 lm

UL Listing

UL-US-L359489-11-60219102-9

Operating Temperature

-40 ̊ C to 45 ̊ C ( -40°F to 113°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Building perimeters, Pathway, Green area

Mounting

Poles or Wall sconce

Accessories

PIR Motion Sensor ( Optional ), Photocell ( Optional )

Downloads

MPL01 Series Post Top Spec Sheet
