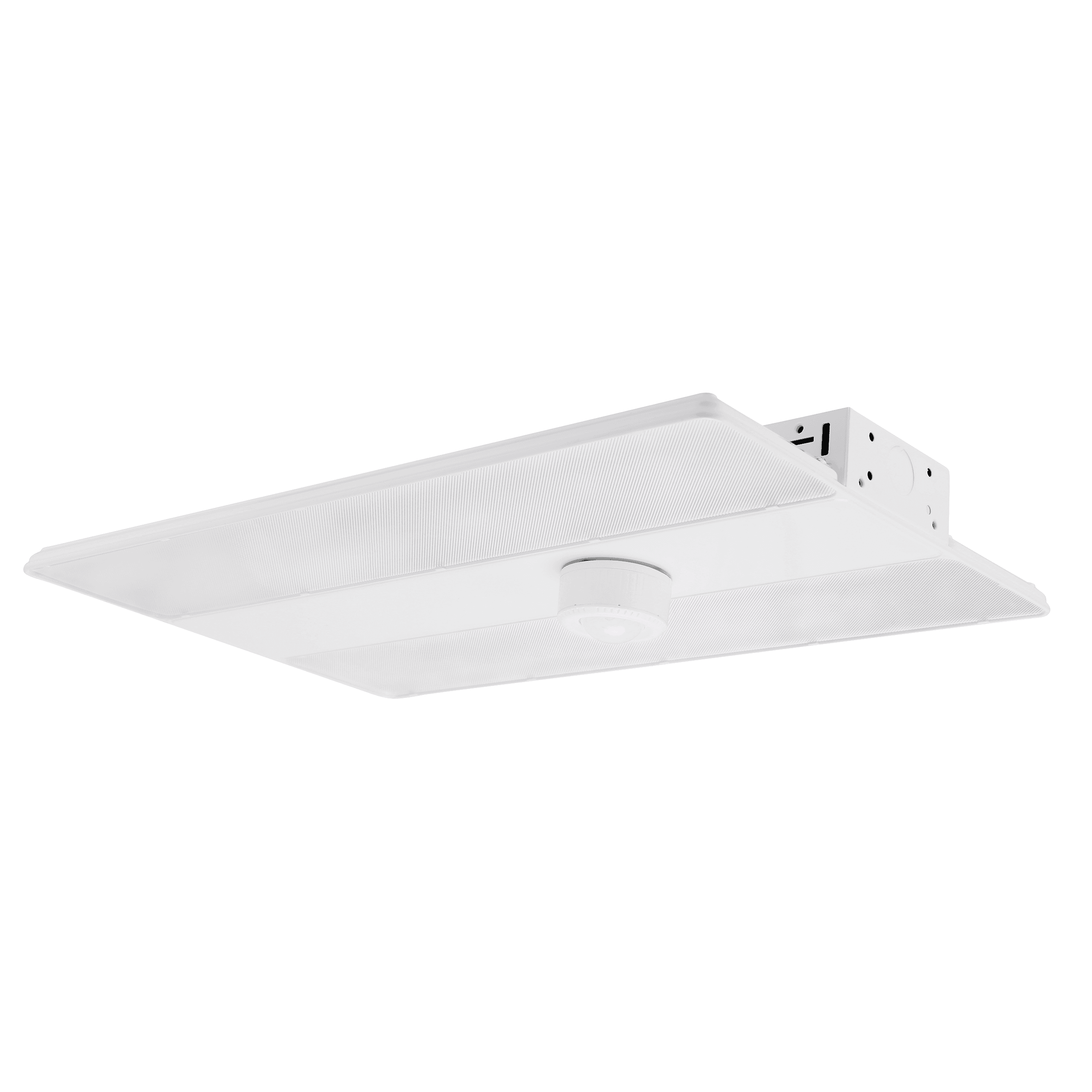

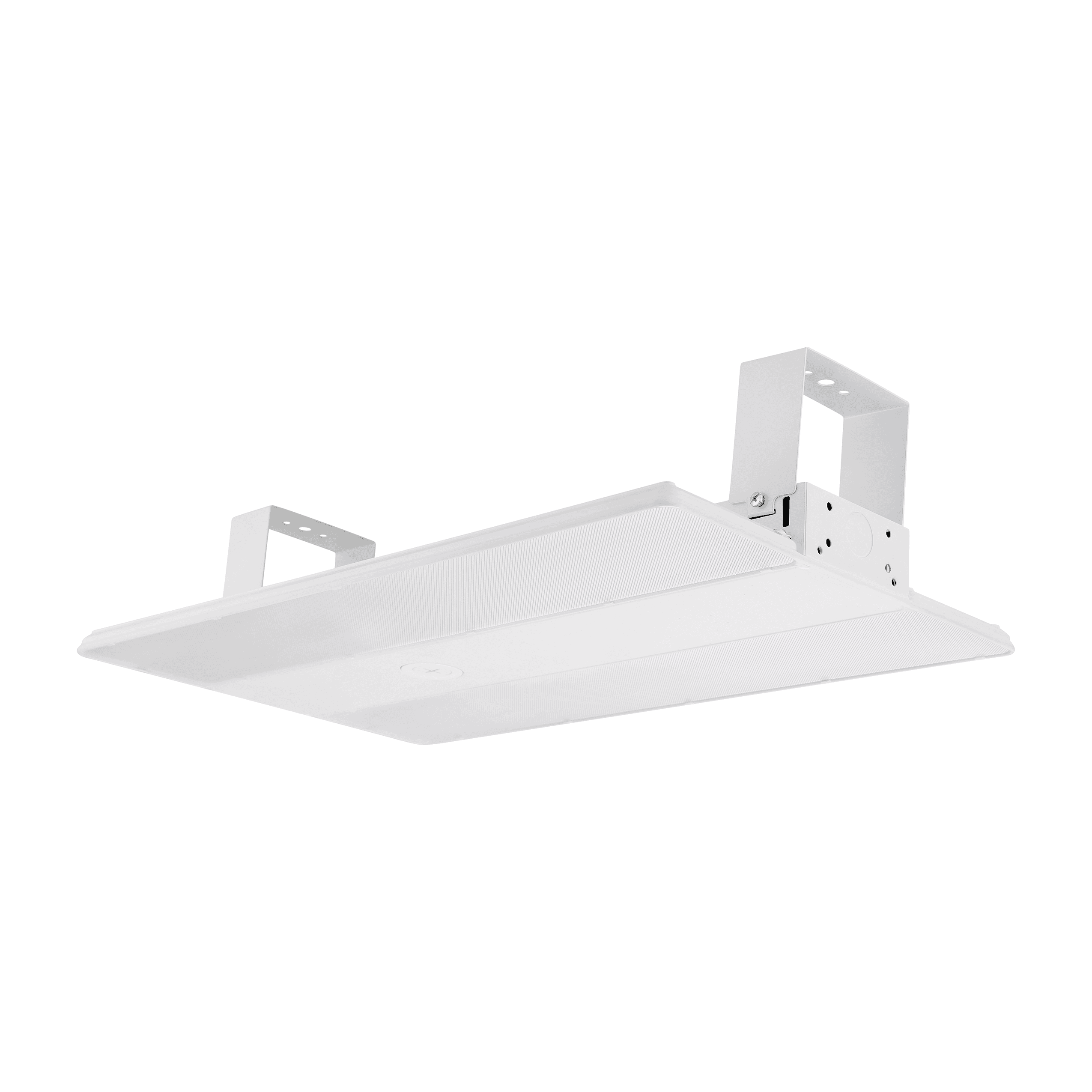

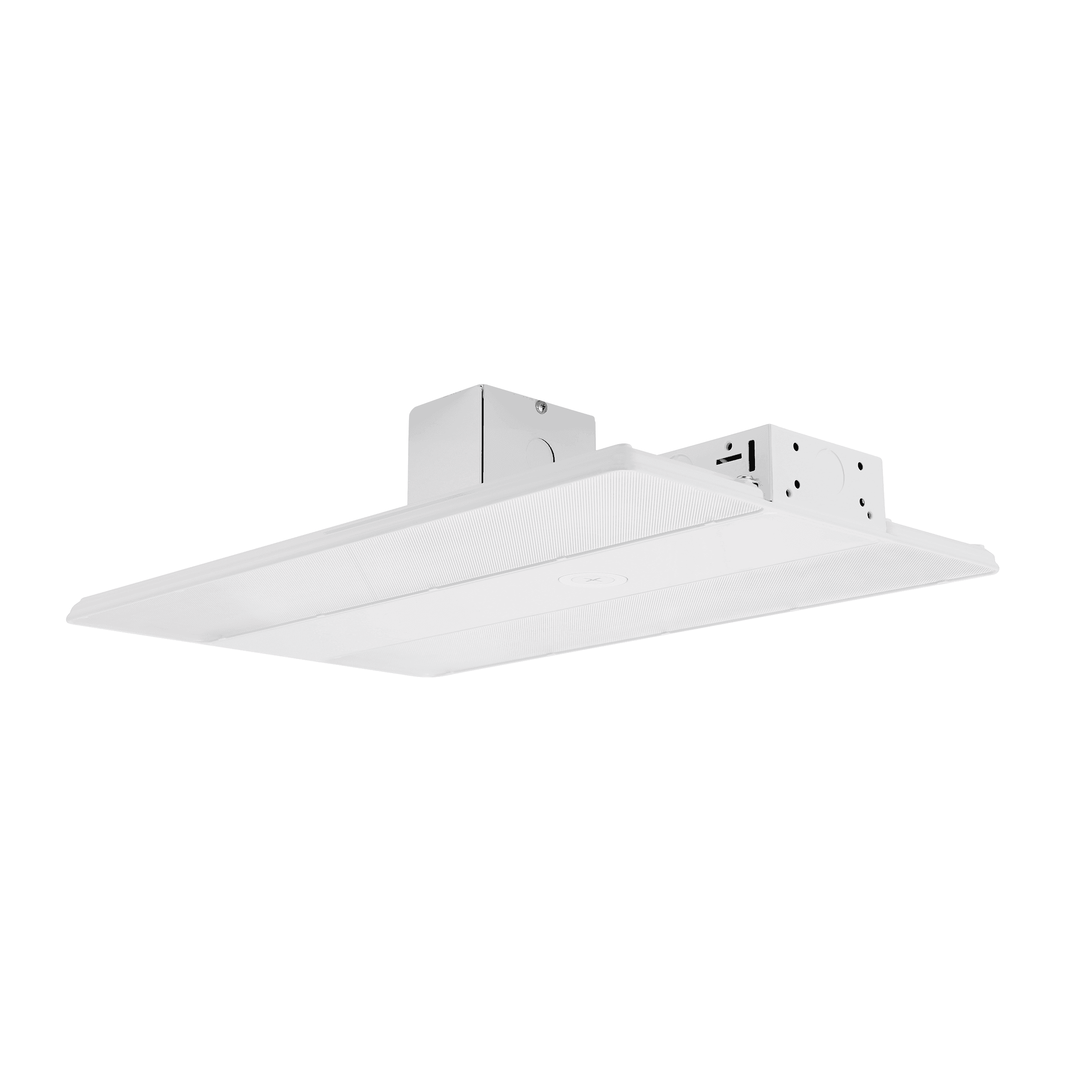

MLH07 – Linear High Bays

Description

Our MLH07 series linear high bay, ensure energy efficiency, excellent light uniformity, and has a long life span. This fixture aims to reduce the contractor’s budget, making it an ideal choice for retrofitting or new projects. The compact structure design makes the installation of the fixture fast & seamless. Each model supports CCT & Wattage Selection, which improves the flexibility and convenience of on-site installation and significantly reduces stocking SKUs.



Features & Benefits

Features & Benefits

  • Ultra-Compact, Sturdy Design.

  • Durable die-cast aluminum housing and polycarbonate lens.

  • Available in Prismatic Diffuser, Aisle Optic, Narrow Optic.

  • CRI>80.

  • 6KV surge protection.

  • 0-10V dimming driver standard for 10% to 100% dimming

  • Operating temperature is -40℃ to 50℃.

Specifications

Series No.

MLH07

Voltage

120-277 VAC or 347-480 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

80W, 130W, 160W, 205W, 300W, 410W

Light Output

12100 lm, 18500 lm, 24100 lm, 30500 lm, 36100 lm, 42000 lm

UL Listing

UL-US-2222785-2

Operating Temperature

-40°C to 50°C ( -40°F to 122°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Warehouse, Commercial lighting

Mounting

Pendant or surface mount

Accessories

PIR Motion Sensor (Optional), Emergency Battery Backup, Steel Wire Rope, Pendant Hanger, Wire Guards

Specifications

Series No.

MLH07

Voltage

120-277 VAC or 347-480 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

80W, 130W, 160W, 205W, 300W, 410W

Light Output

12100 lm, 18500 lm, 24100 lm, 30500 lm, 36100 lm, 42000 lm

UL Listing

UL-US-2222785-2

Operating Temperature

-40°C to 50°C ( -40°F to 122°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Warehouse, Commercial lighting

Mounting

Pendant or surface mount

Accessories

PIR Motion Sensor (Optional), Emergency Battery Backup, Steel Wire Rope, Pendant Hanger, Wire Guards

Specifications

Series No.

MLH07

Voltage

120-277 VAC or 347-480 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

80W, 130W, 160W, 205W, 300W, 410W

Light Output

12100 lm, 18500 lm, 24100 lm, 30500 lm, 36100 lm, 42000 lm

UL Listing

UL-US-2222785-2

Operating Temperature

-40°C to 50°C ( -40°F to 122°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Warehouse, Commercial lighting

Mounting

Pendant or surface mount

Accessories

PIR Motion Sensor (Optional), Emergency Battery Backup, Steel Wire Rope, Pendant Hanger, Wire Guards
