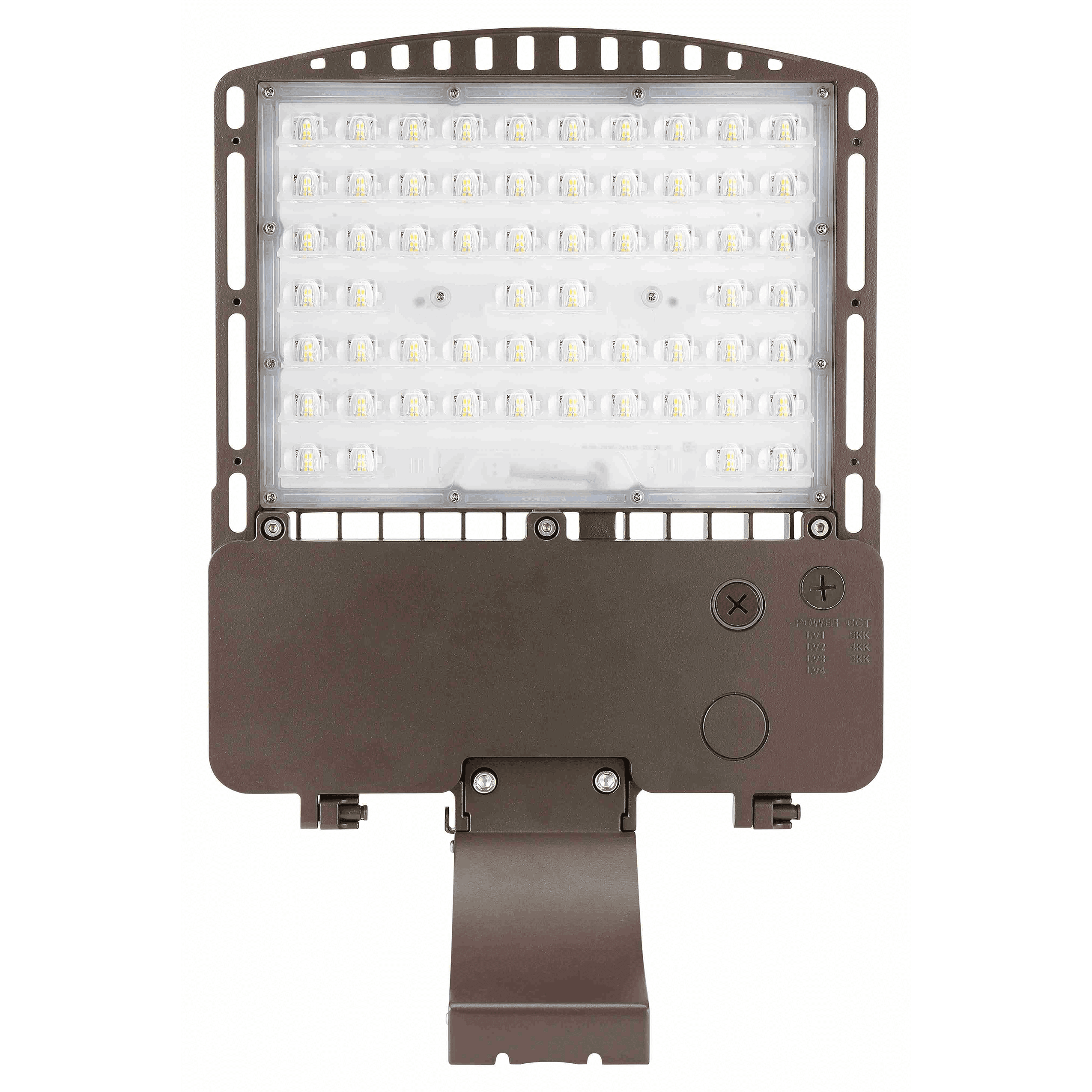

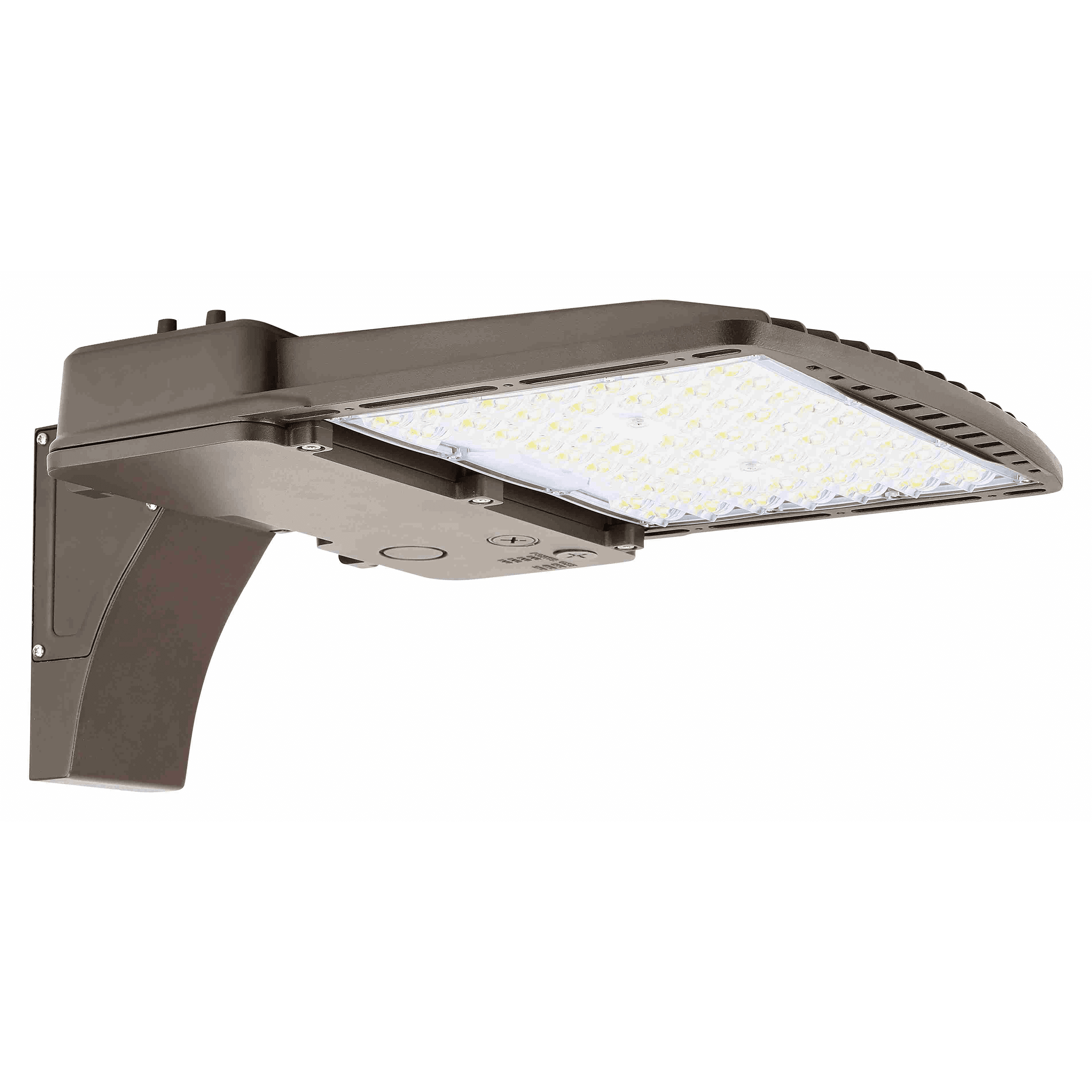

MAL08 – Area Lights

Description

MAL08 utilizes the latest LED technology to provide high performance, high efficiency,and long-lasting service, while also meeting the needs of customers with a low budget. The concept of a slim and light housing optimizes product heat management through convective cooling.

Features & Benefits

Features & Benefits

  • Durable one-piece die-cast aluminum housing and polycarbonate lens.

  • Color Temperature adjustable: 3000K,4000K,5000K

  • Available in lEs Type ll, lll, lV,V distributions.

  • Four adjustable Wattage levels available for each model.

  • Standard 0-10V dimming driver for 10% to 100% dimming.

  • 10KV(@120-277V)or 20KV@347-480V) surge protection.

  • Operating temperature is -40℃ to 45℃.

Specifications

Series No.

MAL08

Voltage

120-277 VAC or 347-480 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

100W, 140W, 180W, 250W, 300W, 400W

Light Output

Max 64,000 lm

UL Listing

-

Operating Temperature

-40°C to 40°C ( -40°F to 104°F )

Lifespan

100,000-hour

Warranty

5 year

Application

Automobile dealerships, Parking lots, Downtown areas

Mounting

Round pole, Square pole, Slipfitter, Yoke and Wall mount

Accessories

PIR Sensor, Photocell, External Glare Shield
