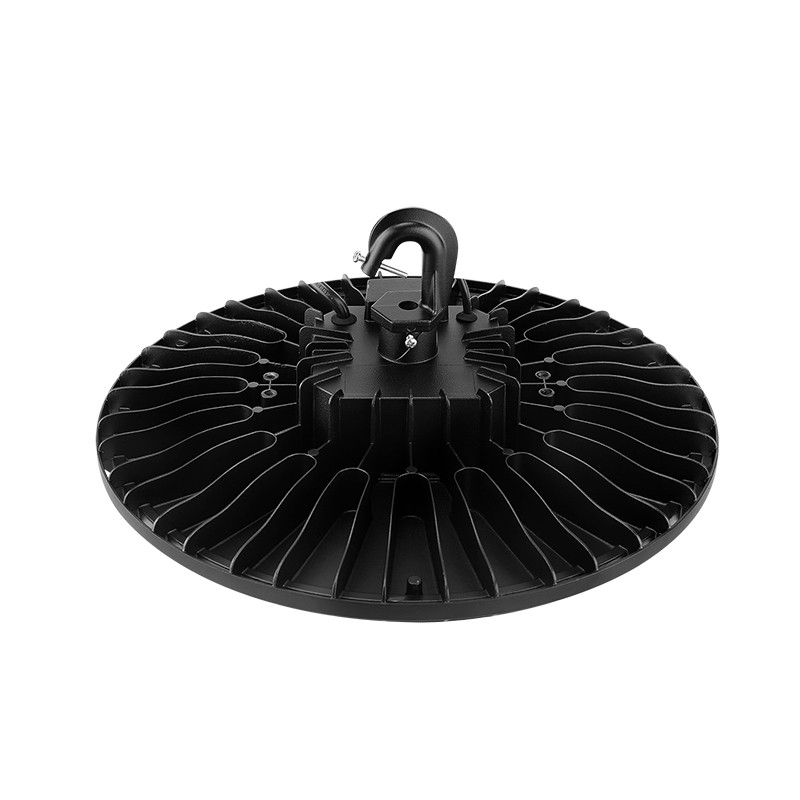

MHB08 – UFOs

Description

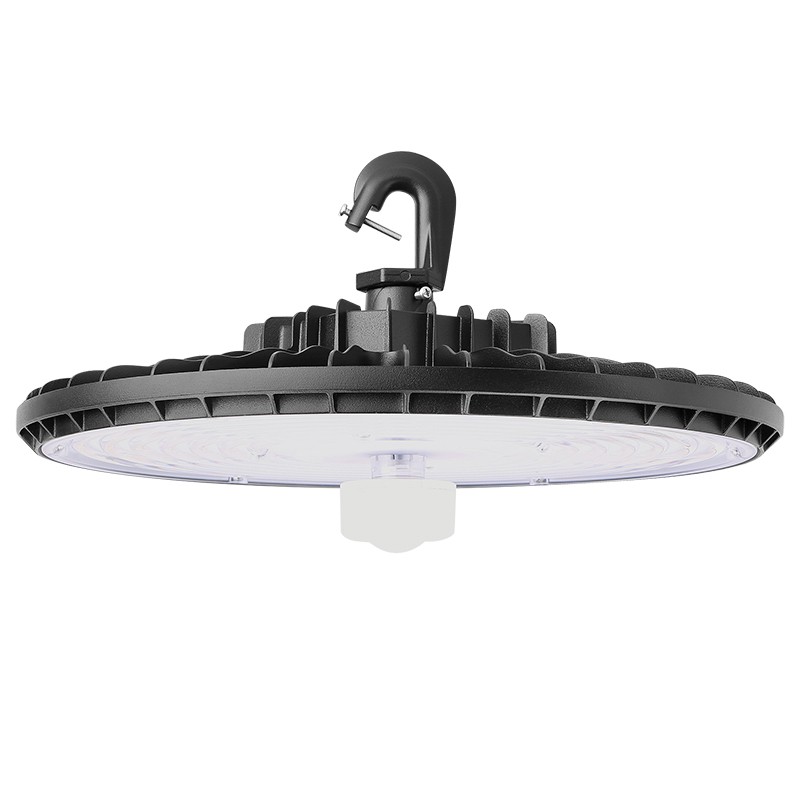

Our MHB08 will provide you with a new high bay lighting experience: high output, low glare (compliant with DLC premium requirements), and supports multiple installation methods (hook, pendant, surface mounting), making the installation of the luminaire easy, simple, and safe. The 3-second plug-in sensor option provides an unprecedented speed experience for configuration replacement. MHB08′s unique feature – adjustable power and color temperature (power adjustment: 100%, 80%, 60%, 40%; color temperature adjustment: three CCTs adjustments of 3000K, 4000K, 5000K, or two CCTs adjustments of 4000K, 5000K) – will effectively reduce your budget.

Features & Benefits

Features & Benefits

  • Compact High bay, quick and easy to install.

  • 6KV surge protection.

  • Offer 2 selectable CCT (40K/50K), with the option for 3 selectable CCT (30K/40K/50K).

  • Four adjustable Wattage levels available for each model.

  • 0-10V dimming driver standard for 10% to 100% dimming.

  • Operating temperature is -40˚C to 50˚C.

Specifications

Series No.

MHB08

Voltage

120-277V

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

100W, 160W, 210W

Light Output

15000 lm, 25000 lm, 32000 lm

UL Listing

UL-US-2301661-3

Operating Temperature

-40°C to 50°C ( -40°F to 122°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Warehouses, Industrial, Retail

Mounting

Hook mount, Pendant mount and surface mounting

Accessories

Emergency Battery, External PIR sensor, U-Bracket

Specifications

Series No.

MHB08

Voltage

120-277V

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

100W, 160W, 210W

Light Output

15000 lm, 25000 lm, 32000 lm

UL Listing

UL-US-2301661-3

Operating Temperature

-40°C to 50°C ( -40°F to 122°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Warehouses, Industrial, Retail

Mounting

Hook mount, Pendant mount and surface mounting

Accessories

Emergency Battery, External PIR sensor, U-Bracket

Specifications

Series No.

MHB08

Voltage

120-277V

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

100W, 160W, 210W

Light Output

15000 lm, 25000 lm, 32000 lm

UL Listing

UL-US-2301661-3

Operating Temperature

-40°C to 50°C ( -40°F to 122°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Warehouses, Industrial, Retail

Mounting

Hook mount, Pendant mount and surface mounting

Accessories

Emergency Battery, External PIR sensor, U-Bracket

Downloads

MHB08 Series UFO Spec Sheet

MHB08 Series UFO Spec Sheet
