MHB05 – UFOs

Description

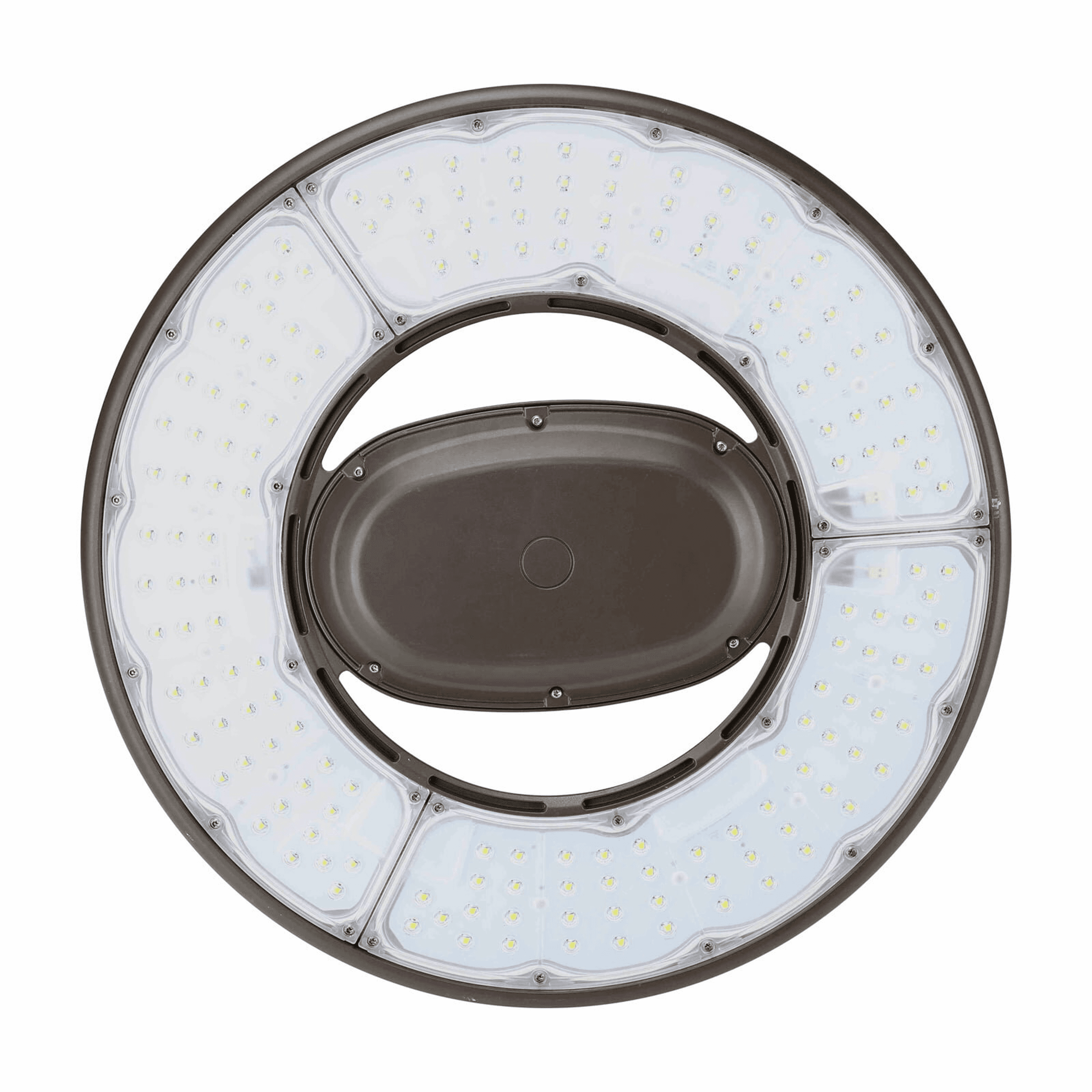

Our MHB05 is the ideal light source for energy-efficient, low maintenance illumination in large spaces. It was designed with durability and functionality in mind,  the MHB05 are versatile and suited to satisfy all long-term lighting needs. The MHB05 delivers ultra-high luminous flux for use in large indoor environments with a clearance of more than 30 feet. Its high luminous efficiency features cost savings for customers and is  favored by customers compared to similar products. The MHB05 is ideal for industrial and manufacturing applications, and is your LED replacement for up to 1000W MH fixtures.

Features & Benefits

Features & Benefits

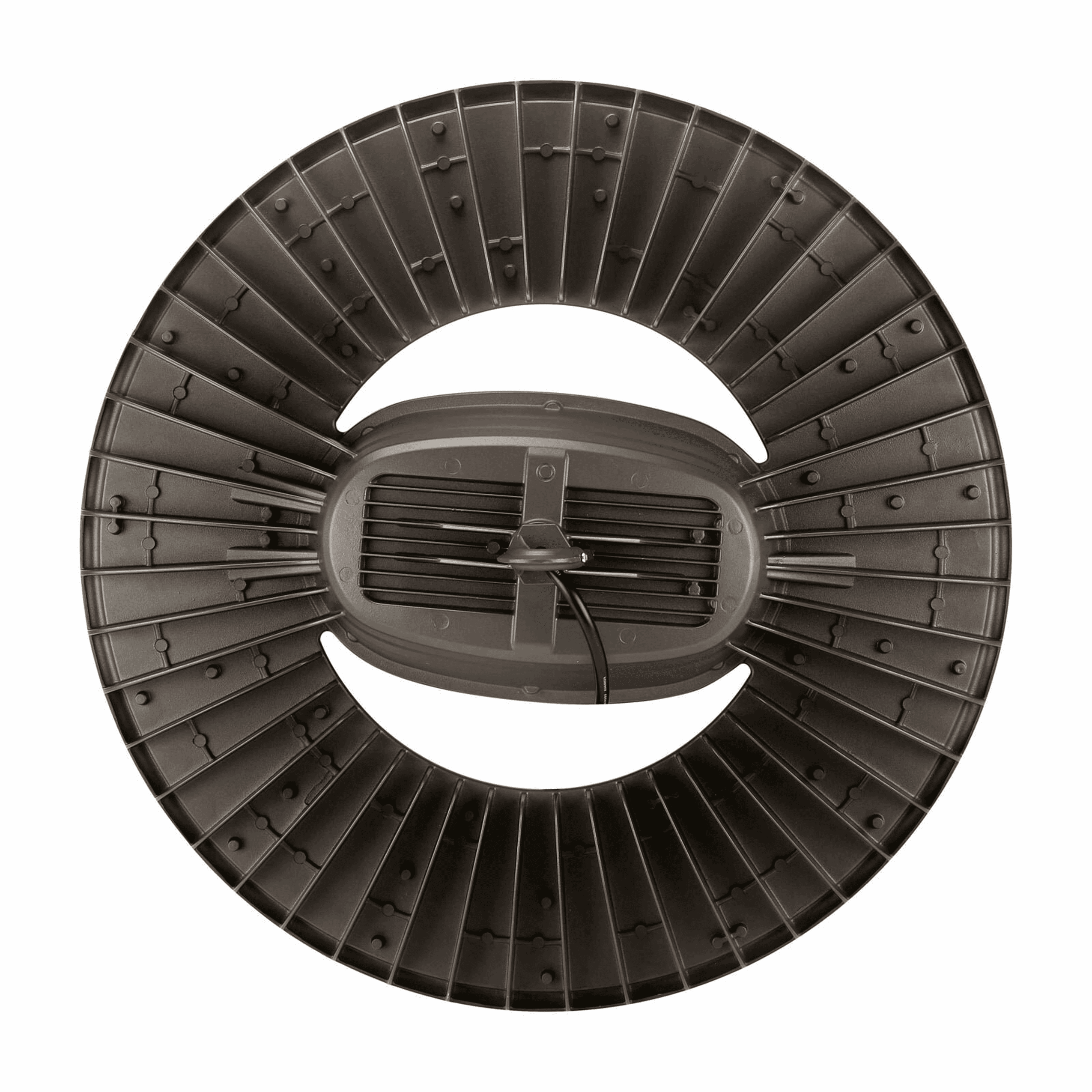

  • Durable die-cast aluminum housing and polycarbonate lens.

  • 10KV(@120-277V)or 20KV(@347-480V) surge protection.

  • Universal voltage (120-277V or 347-480V).

  • 0-10V dimming driver standard for 10% to 100% dimming.

  • Suitable for temperatures as low as -40°C and as high as 65°C.

Specifications

Series No.

MHB05

Voltage

120-277V

Dimmable

0-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

350W, 410W

Light Output

33000 lm, 41000 lm, 49500 lm, 55500 lm

UL Listing

20190704-E359489

Operating Temperature

-40°C to 65°C ( -40°F to 149°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Warehouses, Industrial, Manufacturing

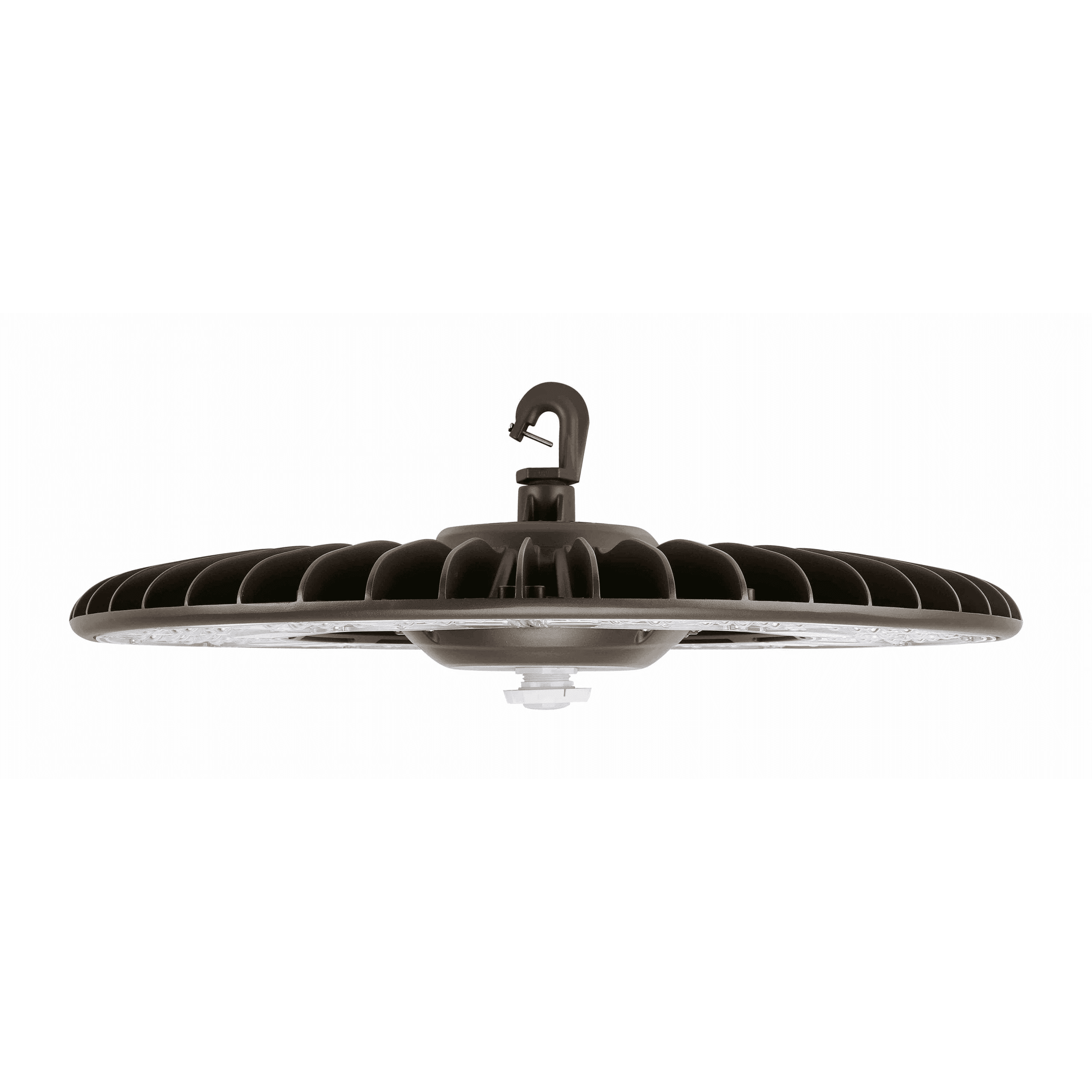

Mounting

Conduit pendant, Hook mounting

Accessories

PIR Motion Sensor

Specifications

Series No.

MHB05

Voltage

120-277V

Dimmable

0-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

350W, 410W

Light Output

33000 lm, 41000 lm, 49500 lm, 55500 lm

UL Listing

20190704-E359489

Operating Temperature

-40°C to 65°C ( -40°F to 149°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Warehouses, Industrial, Manufacturing

Mounting

Conduit pendant, Hook mounting

Accessories

PIR Motion Sensor

Specifications

Series No.

MHB05

Voltage

120-277V

Dimmable

0-10V dimming

Light Source Type

LED chips

Color Temperature

4000K/5000K

Power

350W, 410W

Light Output

33000 lm, 41000 lm, 49500 lm, 55500 lm

UL Listing

20190704-E359489

Operating Temperature

-40°C to 65°C ( -40°F to 149°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Warehouses, Industrial, Manufacturing

Mounting

Conduit pendant, Hook mounting

Accessories

PIR Motion Sensor
