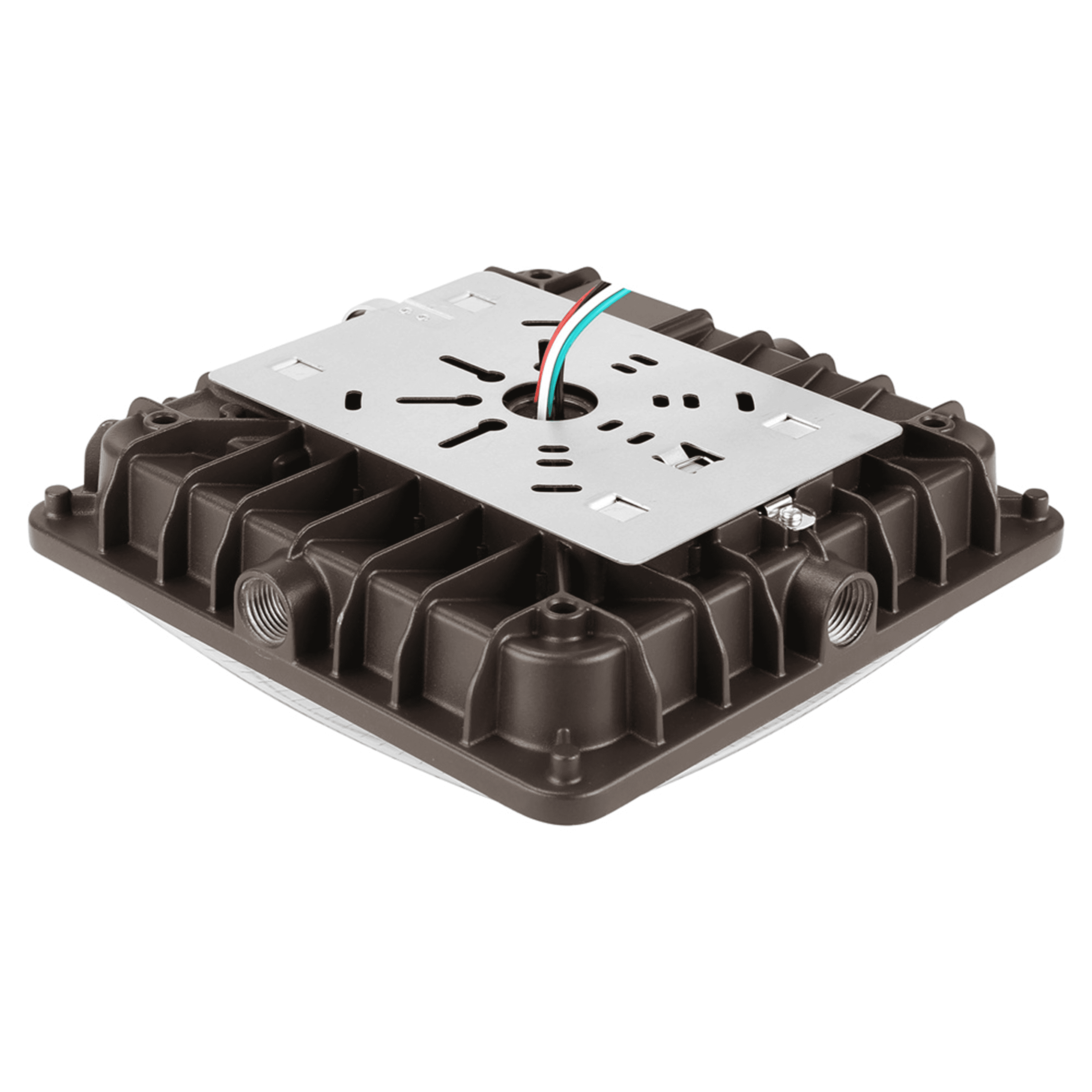

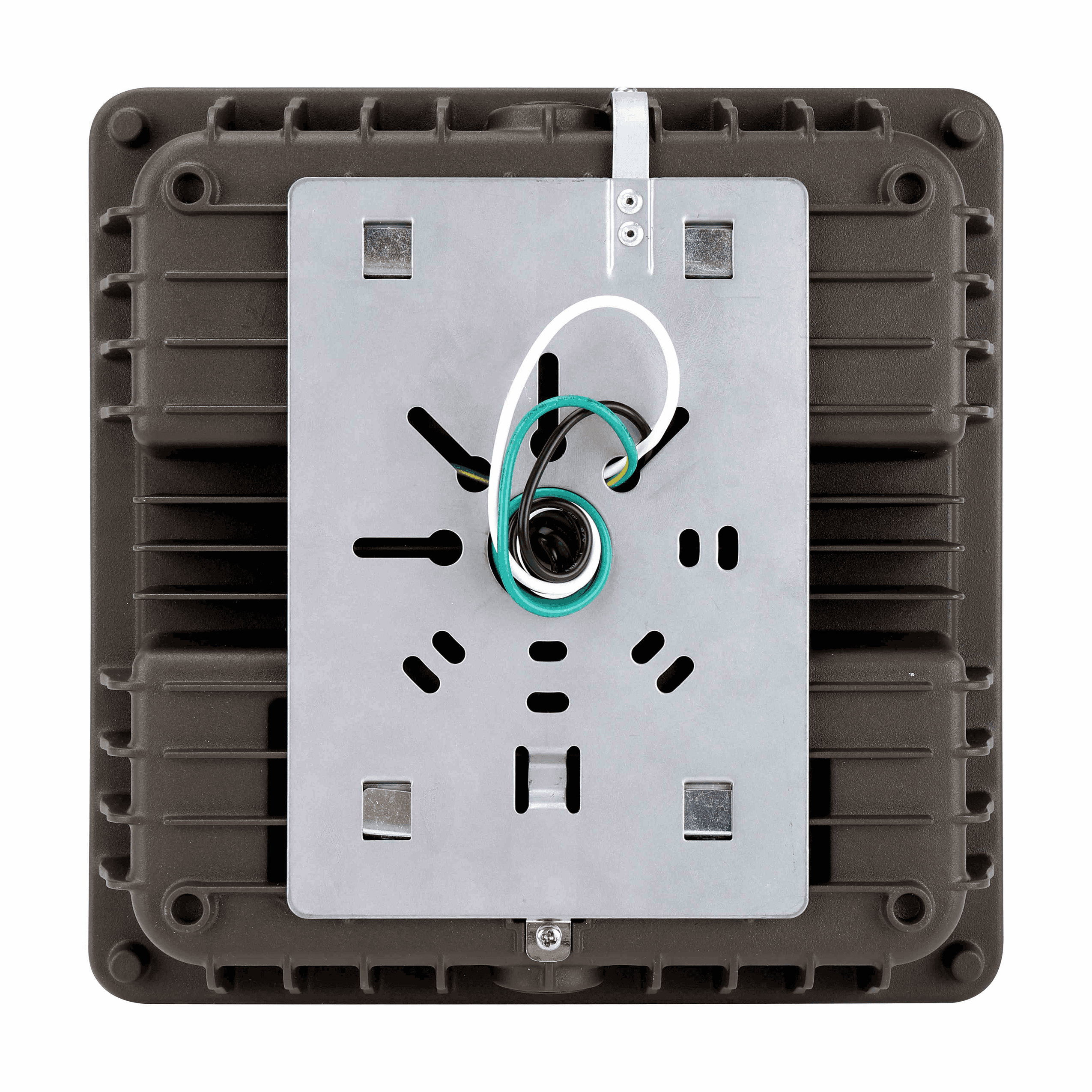

CP07 – Square Canopy

Description

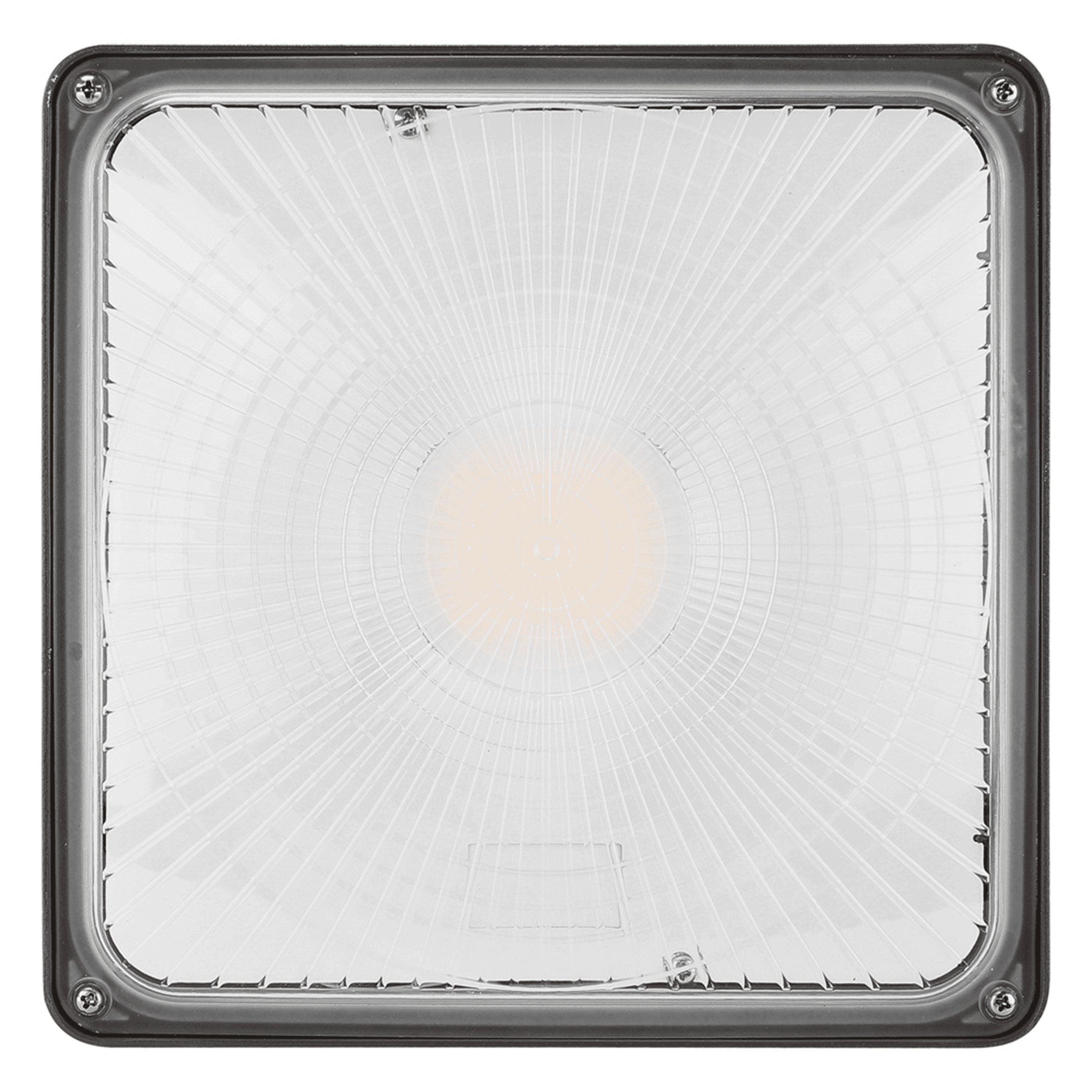

MCP07 is a budget-friendly and energy-efficient fixture suitable for outdoor applications such as commercial buildings, building entrances, sidewalks and indoor parking lots. The uniquely designed translucent polycarbonate lens creates a comfortable lighting effect. At the same time, it is a fixture with high return on the basis of field regulation of the output lumen value (100%, 80%, 60%, 40%) and CCT (3000K, 4000K, 5000K). The MCP07 is also easy to install and compatible with Motion sensor and emergency battery features.

Features & Benefits

Features & Benefits

  • Full die-cast for simplicity looks and enhanced life-span and durability

  • Two sizes and Multiple Outputs.

  • Color Temperature adjustable: 3000K, 4000K, 5000K.

  • Four adjustable Wattage levels available for each model.

  • 0-10V dimming driver standard for 10% to 100% dimming

  • Dusk-to-Dawn Photocell optional.

  • 6KV surge protection.

  • Operating temperature is -40°Cto 40°C.

Specifications

Series No.

MCP07

Voltage

120-277VAC or 120-347VAC

Dimmable

0-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

60W

Light Output

8400 lm

UL Listing

UL-CA-2235953-0

Operating Temperature

-40 ̊ C to 40 ̊ C ( -40°F to 104°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Retail and grocery, Parking structures, Walkways

Mounting

Conduit pendant or surface mounting

Accessories

Sensor - Screw on (Optional), Emergency Box (Optional)

Specifications

Series No.

MCP07

Voltage

120-277VAC or 120-347VAC

Dimmable

0-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

60W

Light Output

8400 lm

UL Listing

UL-CA-2235953-0

Operating Temperature

-40 ̊ C to 40 ̊ C ( -40°F to 104°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Retail and grocery, Parking structures, Walkways

Mounting

Conduit pendant or surface mounting

Accessories

Sensor - Screw on (Optional), Emergency Box (Optional)

Specifications

Series No.

MCP07

Voltage

120-277VAC or 120-347VAC

Dimmable

0-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

60W

Light Output

8400 lm

UL Listing

UL-CA-2235953-0

Operating Temperature

-40 ̊ C to 40 ̊ C ( -40°F to 104°F )

Lifespan

50,000-hour

Warranty

5 year

Application

Retail and grocery, Parking structures, Walkways

Mounting

Conduit pendant or surface mounting

Accessories

Sensor - Screw on (Optional), Emergency Box (Optional)
