CDL Series – Downlights

Description

Our LED Commercial Downlights deliver adaptable, high-efficiency illumination for today’s commercial spaces. Available in 4-inch, 6-inch, 8-inch, and 10-inch sizes, these fixtures fit standard ceiling cutouts—making them a versatile choice for offices, retail stores, hospitality projects, and more. We’ve designed each downlight with the same focus on performance, efficiency, and long-term reliability that defines our entire product line.

Features & Benefits

Features & Benefits

  • Tunable 5 CCT.

  • Tunable 5 Wattages.

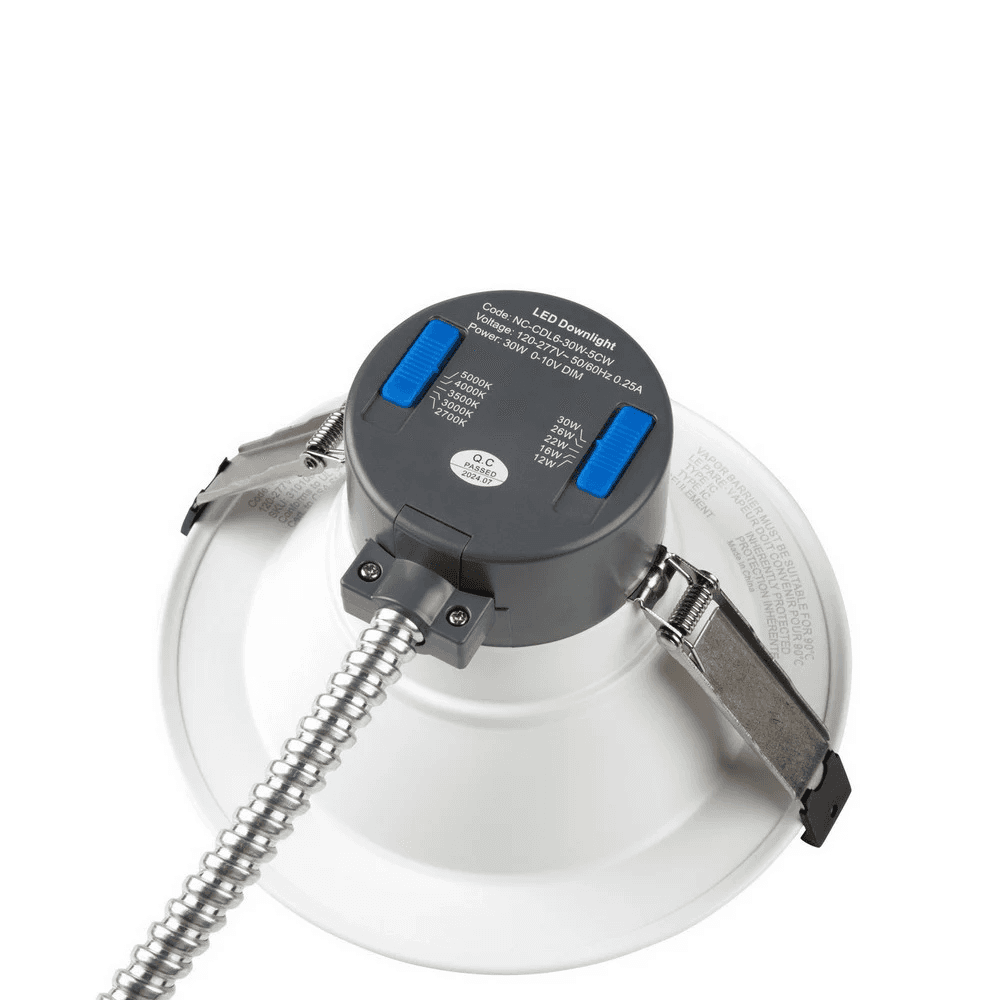

  • Designed with integral whip to connect directly to a junction box.

  • Integral driver eliminates the need for a traditional multipiece fixture setup.

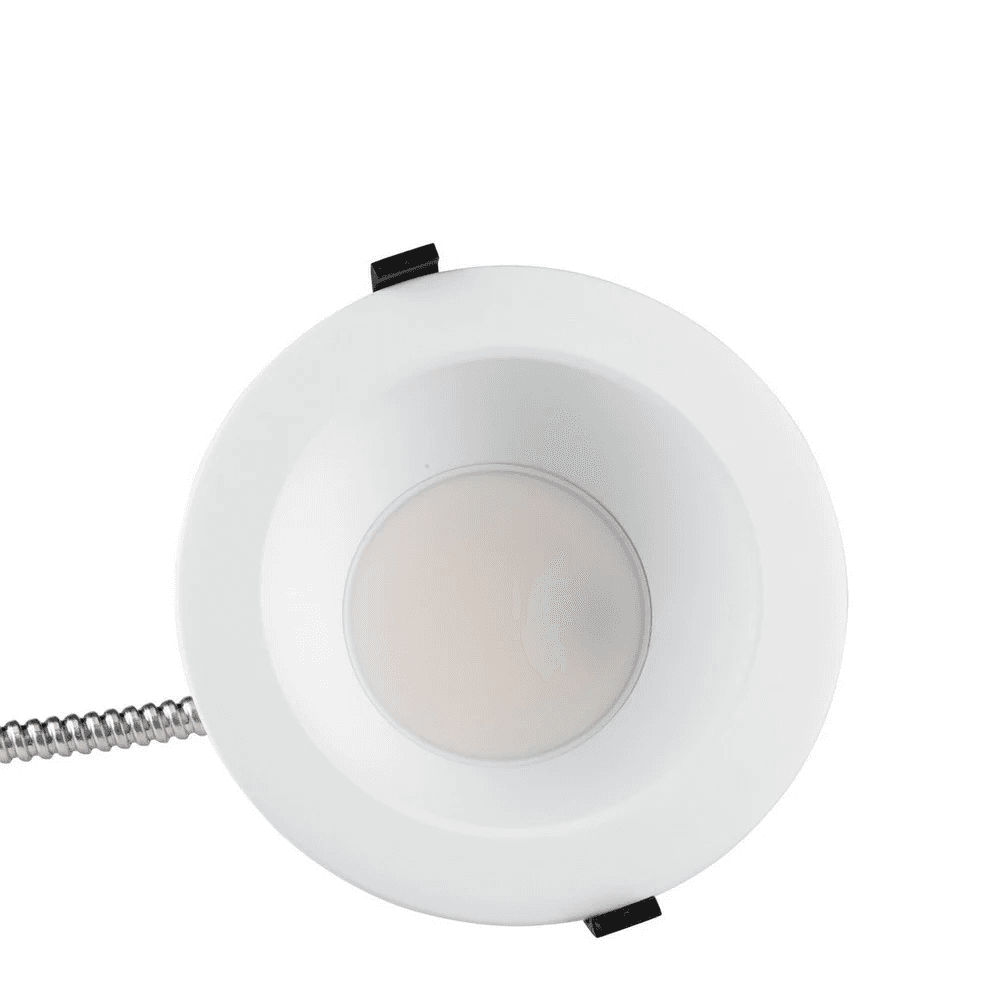

  • Smooth reflector trim offers clean, modern appearance.

  • Aluminum lamp body, deep reflector design.

  • Powered by LED 0−10V dimming driver.

  • Ambient operating temperature: −20ºC/−4ºF to 40ºC/104ºF.

Specifications

Series No.

CDL Series

Voltage

120-277V

Dimmable

0-10V Continuous dimming

Light Source Type

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K

Power

6W, 8W, 10W, 12W, 16W, 22W, 26W, 30W, 35W, 40W

Light Output

600-4800 LM

UL Listing

Operating Temperature

-4°F to 113°F (-20°C to 45°C).

Lifespan

50,000-hour

Warranty

5 year

Application

Commercial buildings, Hospitality, Offices, etc.

Mounting

Ceilings

Accessories

Goof rings, Construction plates, Safety lanyards, Emergency drivers

Specifications

Series No.

CDL Series

Voltage

120-277V

Dimmable

0-10V Continuous dimming

Light Source Type

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K

Power

6W, 8W, 10W, 12W, 16W, 22W, 26W, 30W, 35W, 40W

Light Output

600-4800 LM

UL Listing

Operating Temperature

-4°F to 113°F (-20°C to 45°C).

Lifespan

50,000-hour

Warranty

5 year

Application

Commercial buildings, Hospitality, Offices, etc.

Mounting

Ceilings

Accessories

Goof rings, Construction plates, Safety lanyards, Emergency drivers

Specifications

Series No.

CDL Series

Voltage

120-277V

Dimmable

0-10V Continuous dimming

Light Source Type

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K

Power

6W, 8W, 10W, 12W, 16W, 22W, 26W, 30W, 35W, 40W

Light Output

600-4800 LM

UL Listing

Operating Temperature

-4°F to 113°F (-20°C to 45°C).

Lifespan

50,000-hour

Warranty

5 year

Application

Commercial buildings, Hospitality, Offices, etc.

Mounting

Ceilings

Accessories

Goof rings, Construction plates, Safety lanyards, Emergency drivers

Downloads

CDL Series Commercial Down Light Spec Sheet

CDL Series Commercial Down Light Spec Sheet
