BPLK series – Flat Panel Retrofit Kit

Description

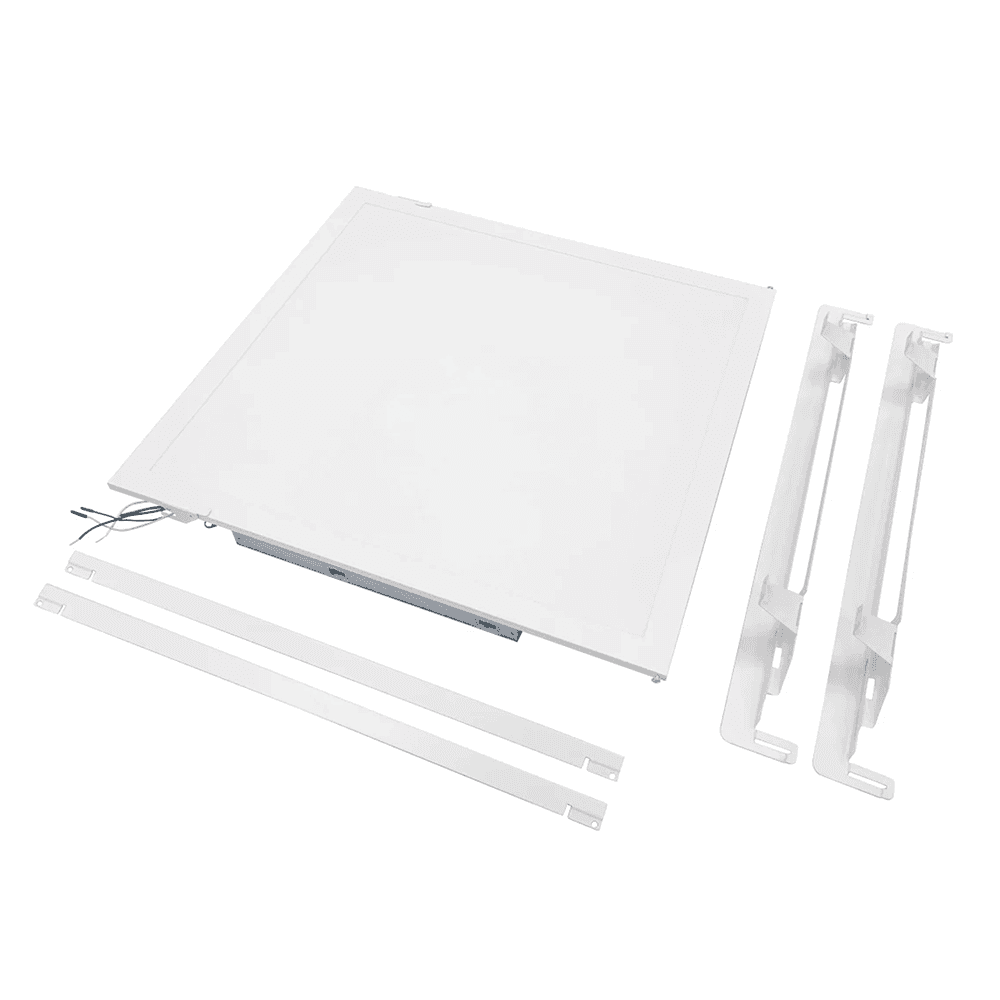

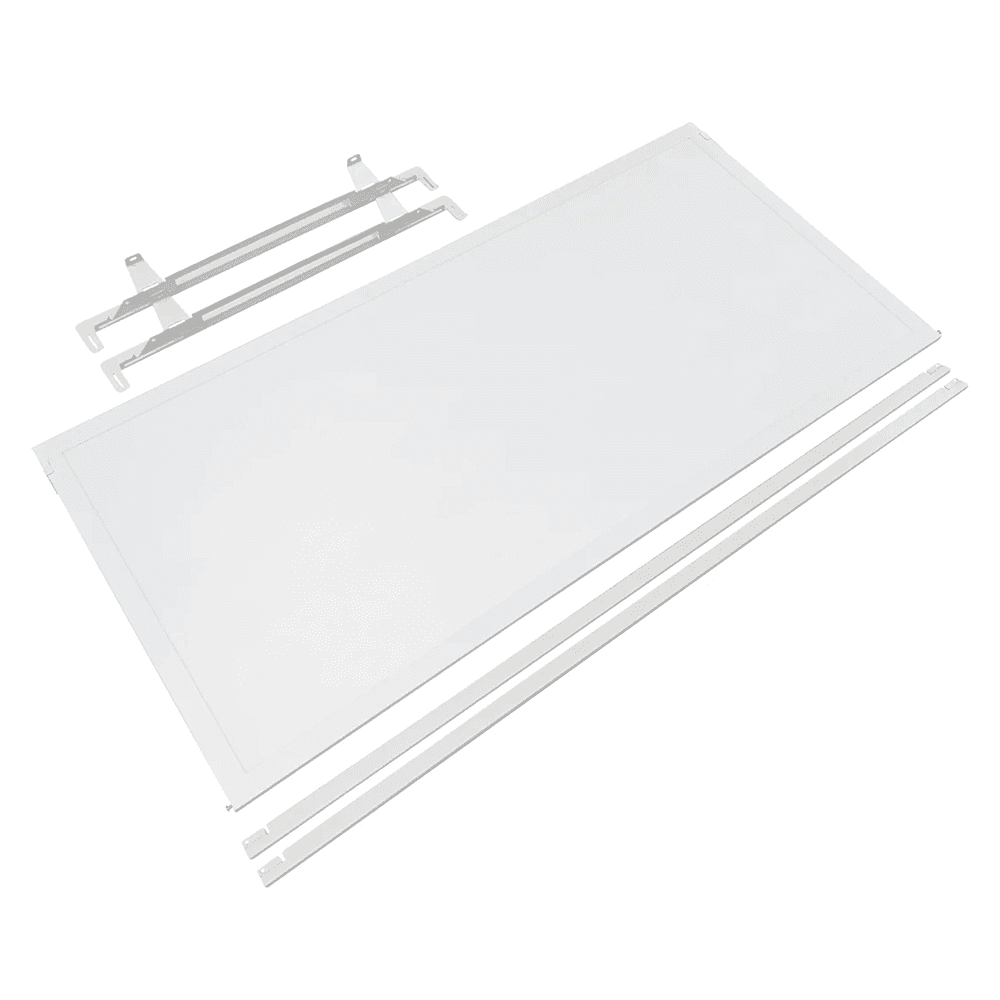

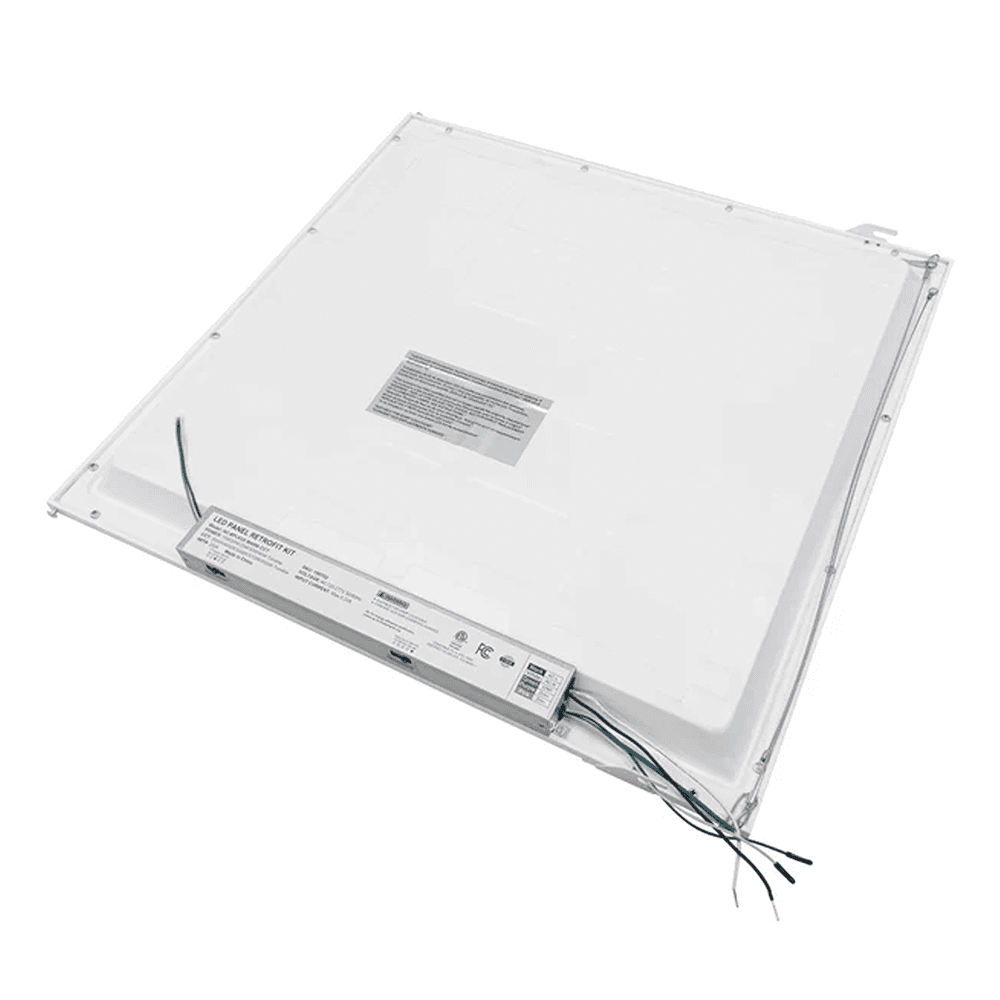

Our LED Panel Light Retrofit Kits modernize outdated ceiling panels without the cost or disruption of full fixture replacement. Offered in 2×2 and 2×4 sizes, these kits drop into standard grids and deliver bright, uniform illumination for offices, classrooms, healthcare facilities, and retail spaces. Our retrofit kits are designed to enhance comfort and visibility while keeping ceilings clean, modern, and efficient.

Features & Benefits

Features & Benefits

  • Used to Upgrade existing fluorescent recessed troffer, without modifying existing

    fixture mounting.

  • 0-10V Continuous Dimming.

  • Built with the highest quality driver that is Universal Voltage (120V-277Vac).

  • Tunable 5-CCT (3500K, 4000K, 5000K, 5700K, 6500K).

  • Tunable 5-Wattages.

  • Operating temperatures -4°F to 113°F (-20°C to 45°C).

Specifications

Series No.

BPLK Series

Voltage

120-277V

Dimmable

0-10V Continuous Dimming

Light Source Type

Color Temperature

3500K, 4000K, 5000K, 5700K, 6500K

Power

15W, 20W, 25W, 30W, 40W, 50W, 60W, 72W

Light Output

1950-9000 LM

UL Listing

Operating Temperature

4°F to 113°F (-20°C to 45°C

Lifespan

50,000-hour

Warranty

5 year

Application

Offices, Classrooms, Retail Spaces, Etc.

Mounting

Retrofit

Accessories

Sensor

Specifications

Series No.

BPLK Series

Voltage

120-277V

Dimmable

0-10V Continuous Dimming

Light Source Type

Color Temperature

3500K, 4000K, 5000K, 5700K, 6500K

Power

15W, 20W, 25W, 30W, 40W, 50W, 60W, 72W

Light Output

1950-9000 LM

UL Listing

Operating Temperature

4°F to 113°F (-20°C to 45°C

Lifespan

50,000-hour

Warranty

5 year

Application

Offices, Classrooms, Retail Spaces, Etc.

Mounting

Retrofit

Accessories

Sensor

Specifications

Series No.

BPLK Series

Voltage

120-277V

Dimmable

0-10V Continuous Dimming

Light Source Type

Color Temperature

3500K, 4000K, 5000K, 5700K, 6500K

Power

15W, 20W, 25W, 30W, 40W, 50W, 60W, 72W

Light Output

1950-9000 LM

UL Listing

Operating Temperature

4°F to 113°F (-20°C to 45°C

Lifespan

50,000-hour

Warranty

5 year

Application

Offices, Classrooms, Retail Spaces, Etc.

Mounting

Retrofit

Accessories

Sensor
