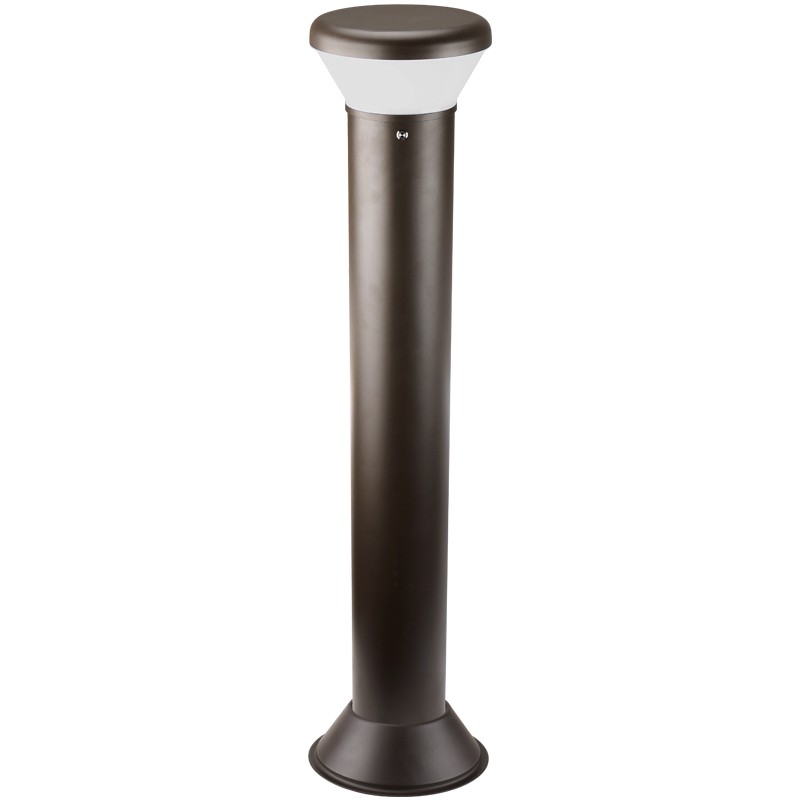

MBL01 – Bollards

Description

The MBL01 Bollard is a stylish, energy saving, long-life solution designed to perform the way a bollard should. An optical leap forward, this full cut-off luminaire will meet the most stringent of lighting codes.

Its rugged construction, durable finish and long-lasting LEDs will provide years of maintenance-free service. It is ideal for illuminating building entryways, walking paths and pedestrian plazas, as well as any other location requiring a low-mounting-height light source.

Features & Benefits

Features & Benefits

  • Durable die-cast aluminum housing

  • UV resistant Milky polycarbonate lens.

  • Built in Emergency Battery.

  • 360° degrees surround illumination.

  • Robust ground cage pre-buried installation.

  • Operating temperature is -40°C to 45°C.

Specifications

Series No.

BL01

Voltage

120-277 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

26W

Light Output

3100 lm

UL Listing

UL-CA-L359489-31-02609102-5

Operating Temperature

-40 ̊ C to 45 ̊ C ( -40°F to 113°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Walkways, Retail, Apartment Complexes

Mounting

-

Accessories

Emergency Battery Backup (Optional)

Specifications

Series No.

BL01

Voltage

120-277 VAC

Dimmable

1-10V dimming

Light Source Type

LED chips

Color Temperature

3000K/4000K/5000K

Power

26W

Light Output

3100 lm

UL Listing

UL-CA-L359489-31-02609102-5

Operating Temperature

-40 ̊ C to 45 ̊ C ( -40°F to 113°F )

Lifespan

50,000 hours

Warranty

5 year

Application

Walkways, Retail, Apartment Complexes

Mounting

-

Accessories

Emergency Battery Backup (Optional)
